Same model may have multiple batches, images only for reference.

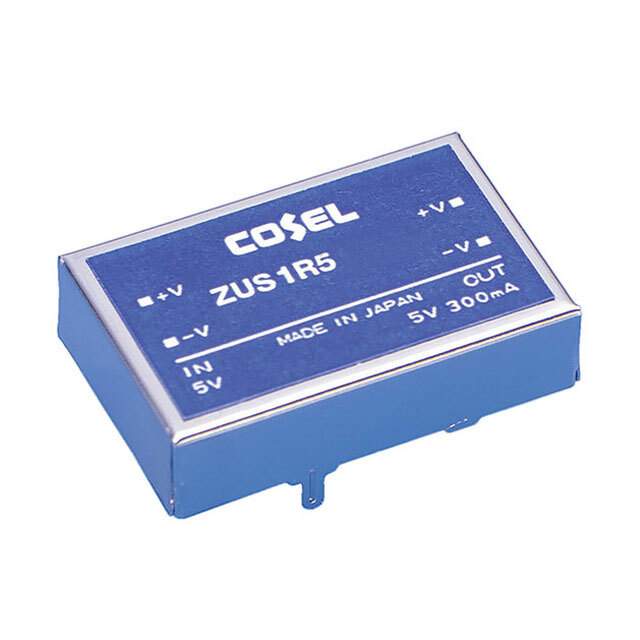

ZUS1R50515 Real Image
Same model may have multiple batches, images only for reference.

ZUS1R50515

Part No ZUS1R50515
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V / Isolated Module DC DC Converter 1 Output 15V 100mA 4.5V - 9V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Cosel USA, Inc.
Series ZUS (1.5W)
Package Box
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 15V
Current - Output (Max) 100mA
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features OCP
Temperature Range - Operating -20°C ~ 71°C (With Derating)
Efficiency 68%
Mounting Type Through Hole
Package / Case 4-DIP Module
Dimension 1.08" L x 0.71" W x 0.28" H (27.5mm x 18.0mm x 7.0mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1776-1838
Standard Package 1
Win Source Part Number 1006626-ZUS1R50515
Ultra Librarian 3D Model Ultra Librarian ZUS1R50515 CAD Model

Description

The ZUS1R50515 is a DC-DC converter that provides an isolated output of 15V manufactured by Cosel USA, Inc.

  • Output Voltage: 15V
  • Maximum Output Current: 100mA
  • Voltage Input Range: 4.5V to 9V
  • Isolation Voltage: 500V
  • Protection: OCP
  • Application: ITE (Commercial)
  • Mounting: Through-Hole
  • Package: 4-DIP Module
  • Temperature Range: -20°C to 71°C (with derating)
  • ECCN: EAR99
