Same model may have multiple batches, images only for reference.

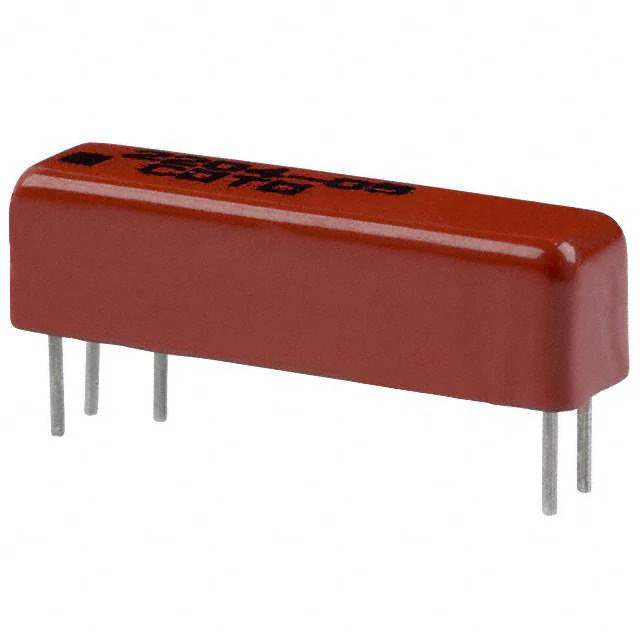

2204-12-311 Real Image
Same model may have multiple batches, images only for reference.

2204-12-311

Part No 2204-12-311
Manufacturer Coto Technology
Catalog Reed Relays
Description RELAY REED SPST 500MA 12V
Datasheet
2204-12-311 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Coto Technology
Series 2200
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 200VAC, 200VDC - Max
Coil Current 8 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Hermetically
Must Operate Voltage 9 VDC
Must Release Voltage 1 VDC
Operate Time 0.5 ms
Release Time 0.1 ms
Temperature Range - Operating -20°C ~ 85°C
Coil Resistance 1.5 kOhms
Base Product Number 2204
Standard Package 29 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 854595-2204-12-311
Ultra Librarian 3D Model Ultra Librarian 2204-12-311 CAD Model

Description

The 2204-12-311 is a SPST-NO (1 Form A) reed relay from Coto Technology.

  • Series: 2200
  • Termination: PC pin
  • Features: Hermetically sealed
  • Coil Voltage: 12VDC
  • Coil Resistance: 1.5 kOhms
  • Coil Current: 8 mA
  • Contact Rating: 500 mA AC/DC
  • Switching Voltage: Up to 200V AC/DC
  • Operate Time: 0.5 ms
  • Release Time: 0.1 ms
  • Mounting: Through-hole
  • Operating Temperature: -20°C to 85°C
