Same model may have multiple batches, images only for reference.

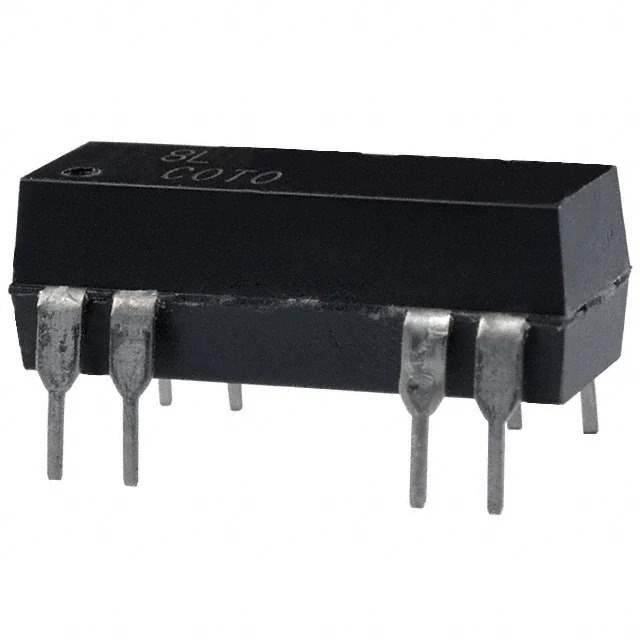

8L02-05-10 Real Image
Same model may have multiple batches, images only for reference.

8L02-05-10

Part No 8L02-05-10
Manufacturer Coto Technology
Catalog Reed Relays
Description RELAY REED DPST 500MA 5V
Datasheet
8L02-05-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Coto Technology
Series 8L
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 200VAC, 200VDC - Max
Coil Current 25 mA
Coil Type Non Latching
Features Electrostatic Shield
Termination Style PC Pin
Must Operate Voltage 3.8 VDC
Must Release Voltage 0.5 VDC
Operate Time 0.5 ms
Release Time 0.5 ms
Temperature Range - Operating -20°C ~ 85°C
Coil Resistance 200 Ohms
Base Product Number 8L02
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 858527-8L02-05-10
Ultra Librarian 3D Model Ultra Librarian 8L02-05-10 CAD Model

Description

The 8L02-05-10 is a DPST-NO (2 Form A) reed relay from Coto Technology.

  • Series: 8L series
  • Termination: PC pin
  • Feature: electrostatic shield
  • Coil Voltage: 5VDC
  • Coil Resistance: 200 Ohms
  • Coil Current: 25 mA
  • Contact Rating: 500 mA
  • Switching Voltages: AC and DC switching voltages up to 200V
  • Operate Time: 0.5 ms
  • Release Time: 0.5 ms
  • Mounting: through-hole
  • Temperature Range: -20°C to 85°C
