The C3D16060 is a silicon carbide (SiC) Schottky diode array from Cree, Inc. These diodes are designed for high-performance power electronics applications where efficiency, high-speed switching, and high-temperature operation are critical.

Applications

• Power Factor Correction (PFC): Used in PFC circuits to improve power factor and reduce harmonic distortion in AC-DC power supplies.
• Motor drives: Employed in motor drive inverters to improve efficiency and reduce switching losses.
• Solar inverters: Used in solar inverters to enhance efficiency and reduce heat generation.
• Uninterruptible Power Supplies (UPS): Integrated into UPS systems for improved performance and reliability.
• High-frequency power converters: Suitable for use in high-frequency power converters due to their fast switching capabilities.

Features

• Silicon Carbide (SiC) Technology: Utilizes SiC material, providing superior performance compared to traditional silicon diodes.
• High Blocking Voltage: Rated for a blocking voltage of 600V, suitable for a wide range of applications.
• Low Forward Voltage Drop: Exhibits a low forward voltage drop, minimizing power losses and improving efficiency.
• Zero Reverse Recovery Current: Features zero reverse recovery current, enabling fast switching speeds and reducing switching losses.
• High Surge Current Capability: Can withstand high surge currents, enhancing reliability in demanding applications.
• High-Temperature Operation: Operates reliably at high temperatures, making it suitable for harsh environments.
• Positive Temperature Coefficient: The forward voltage has a positive temperature coefficient, which aids in paralleling the diodes.
• Array Configuration: Contains multiple diodes in a single package for convenient use and compact design.

Benefits

• Improved Efficiency: SiC technology and low forward voltage drop contribute to higher efficiency in power electronic circuits.
• Reduced Switching Losses: Zero reverse recovery current minimizes switching losses, leading to cooler operation and improved overall performance.
• Enhanced Reliability: High blocking voltage and surge current capability enhance reliability in demanding applications.
• High-Temperature Operation: Operates reliably at high temperatures, making it suitable for harsh environments where heat dissipation is a concern.
• Compact Design: Array configuration allows for a more compact design, saving space on the circuit board.

Additional Details

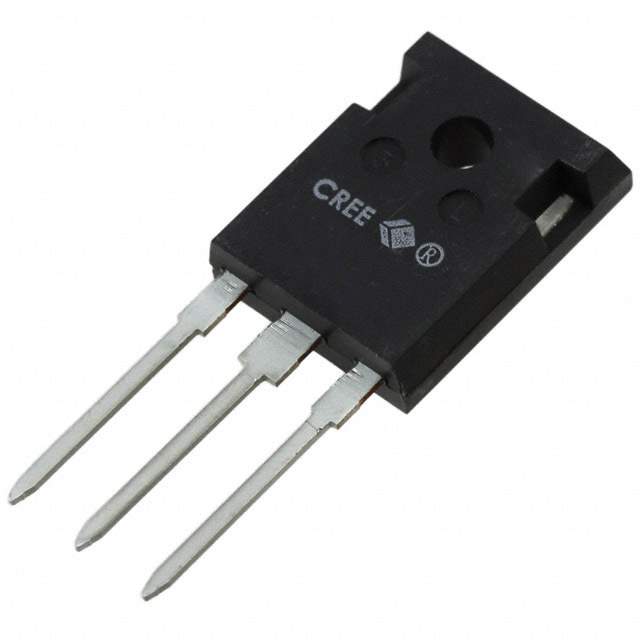

The C3D16060 typically comes in a TO-247 package. It is crucial to follow the manufacturer's recommendations for PCB layout and thermal management to ensure optimal performance and reliability. The datasheet provides detailed information on electrical characteristics, thermal resistance, and application guidelines. Proper heat sinking is often necessary to maintain the diode's operating temperature within acceptable limits. The SiC material allows the diode to operate at significantly higher frequencies compared to silicon diodes, enabling the design of smaller and more efficient power converters.
