Same model may have multiple batches, images only for reference.

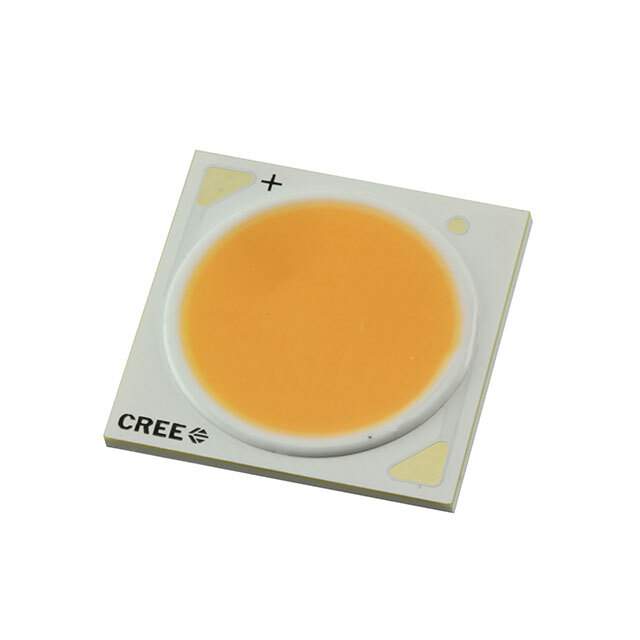

CXA1507-0000-000F00F427H Real Image
Same model may have multiple batches, images only for reference.

CXA1507-0000-000F00F427H

Part No CXA1507-0000-000F00F427H
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1507 WARM WHT SQUARE / Chip On Board LED Lighting Module
Datasheet
CXA1507-0000-000F00F427H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1507
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K 2-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 755 lm (730 lm ~ 780 lm)
Current - Test 400mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 18V
Lumens/Watt @ Current - Test 105 lm/W
Current - Max 750mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 15.85mm L x 15.85mm W
Height 1.70mm
Light Emitting Surface (LES) 8.90mm Diameter
Lens Type Flat
Win Source Part Number 771958-CXA1507-0000-000F00F427H
Popularity Medium
Supply and Demand Status Limited
Family Name CXA1507-0000-000F00F427H
Introduction Date January 17, 2014
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CXA1507-0000-000F00F427H CAD Model

Description

The Cree Inc. 771958-CXA1507-0000-000F00F427H is a medium-popularity chip on board (COB) type LED.

  • Series: XLamp CXA1507
  • Colors: White and Warm
  • Maximum Current: 750mA
  • Voltage-Forward (Vf): 18V
  • Viewing Angle: 115 degrees
  • Height: 1.70mm
  • Lens Type: Flat
  • LES Diameter: 8.90mm
  • CCT (K): 2700K 2-Step MacAdam Ellipse
  • CRI (Color Rendering Index): 80
  • Flux @ Current/Temperature-Test: 755 lm (730 lm ~ 780 lm)
  • Temperature-Test: 85 degrees Celsius
  • Introduction Date: January 17, 2014
  • Estimated EOL Date: 2026
  • ECCN: EAR99
  • Supply and Demand Status: Limited
