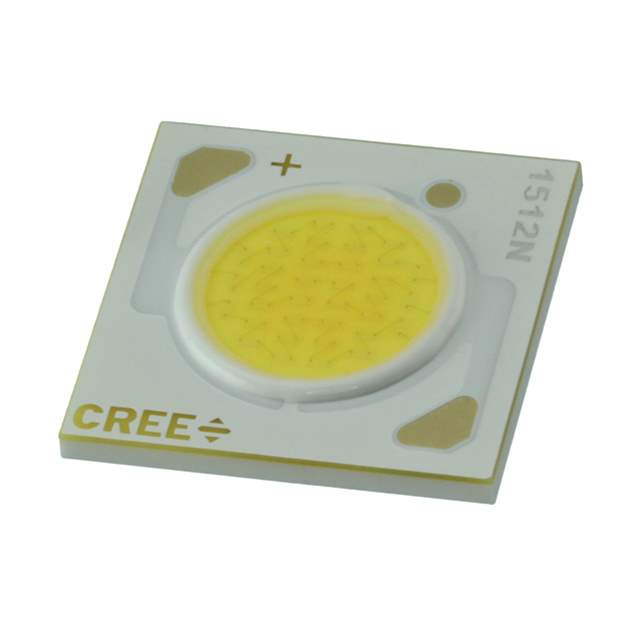

CXA1512-0000-000N0HM240G Real Image
Same model may have multiple batches, images only for reference.

CXA1512-0000-000N0HM240G

Part No CXA1512-0000-000N0HM240G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1512 4000K WHITE SMD / Chip On Board LED Lighting Module
Datasheet
CXA1512-0000-000N0HM240G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1512
Packaging Tray
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 1433 lm (1380 lm ~ 1485 lm)
Current - Test 350mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 114 lm/W
Current - Max 600mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 15.85mm L x 15.85mm W
Height 1.70mm
Light Emitting Surface (LES) 8.90mm Diameter
Lens Type Flat
Win Source Part Number 771964-CXA1512-0000-000N0HM240G
Popularity Medium
Supply and Demand Status Balance
Family Name CXA1512-0000-000N0HM240G
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CXA1512-0000-000N0HM240G CAD Model

Description

The Cree XLamp CXA1512-0000-000N0HM240G is a chip on board (COB) type LED that has a square configuration and a white or neutral color.

  • Maximum Current: 600mA
  • Forward Voltage: 36V
  • Viewing Angle: 115 degrees
  • Height: 1.70mm
  • Lens Type: Flat
  • CCT: 4000K 3-step MacAdam ellipse
  • CRI: 80
  • Flux: 1433 lm @ 350mA
  • Lumens/Watt: 114 lm/W
  • LES Diameter: 8.90mm
  • Dimension: 15.85mm L x 15.85mm W
  • Thermal Resistance: 3 degrees Celsius per watt
  • Category: Optoelectronics
