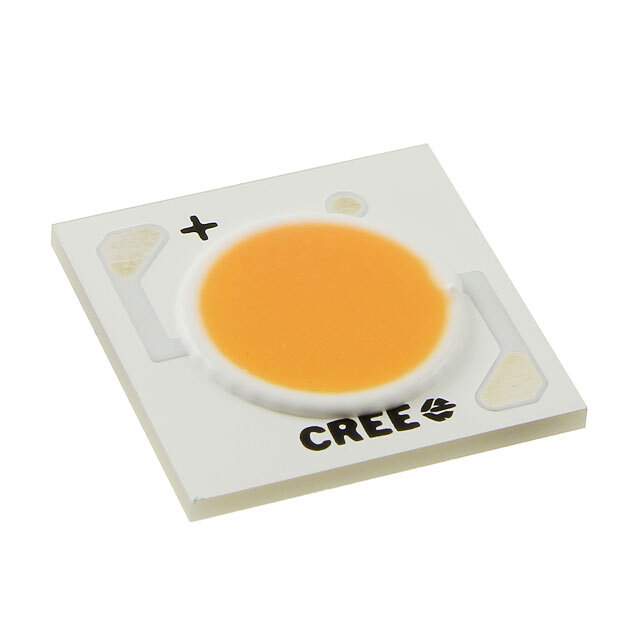

CXA1520-0000-000N00N430G Real Image
Same model may have multiple batches, images only for reference.

CXA1520-0000-000N00N430G

Part No CXA1520-0000-000N00N430G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1520 3000K WHITE SMD
Datasheet
CXA1520-0000-000N00N430G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Packaging Tray
Status Active
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 1770 lm (1710 lm to 1830 lm)
Current - Test 500mA
Temperature - Test 85°C
Forward Voltage 36V
Lumens/Watt @ Current - Test 98 lm/W
Current - Max 900mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Height 1.55mm
Light Emitting Surface (LES) 8.90mm Diameter
Lens Type Flat
Win Source Part Number 1030906-CXA1520-0000-000N00N430G
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CXA1520-0000-000N00N430G CAD Model

Description

The Cree CXA1520-0000-000N00N430G is a chip on board (COB) type electronic component that comes in a square configuration.

  • Type: Chip on Board (COB)
  • Configuration: Square
  • Maximum Current: 900mA
  • Forward Voltage: 36V
  • Viewing Angle: 115 degrees
  • Height: 1.55mm
  • Lens Type: Flat
  • Color Temperature: 3000K 3-Step MacAdam Ellipse
  • CRI: 80
  • Lumens/Watt (Current Test): 98lm/W @ 500mA
  • Flux (Temperature Test): 1770lm (1710 lm to 1830 lm) @ 85 degrees Celsius
  • Light Emitting Surface (LES): 8.90mm diameter
  • Supply and Demand: Balanced
