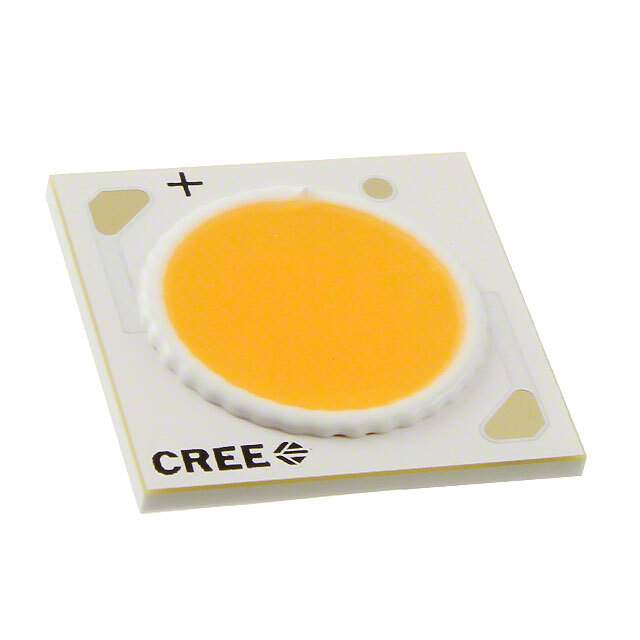

CXA1820-0000-000N0HR257F Real Image
Same model may have multiple batches, images only for reference.

CXA1820-0000-000N0HR257F

Part No CXA1820-0000-000N0HR257F
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1820 COOL WHT SQUARE / Chip On Board LED Lighting Module
Datasheet
CXA1820-0000-000N0HR257F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1820
Packaging Tray
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5700K 4-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 2510 lm (2420 lm ~ 2600 lm)
Current - Test 550mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 37V
Lumens/Watt @ Current - Test 123 lm/W
Current - Max 1.05A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 17.85mm L x 17.85mm W
Height 1.70mm
Light Emitting Surface (LES) 12.00mm Diameter
Lens Type Flat
Win Source Part Number 771973-CXA1820-0000-000N0HR257F
Popularity Medium
Supply and Demand Status Balance
Family Name CXA1820-0000-000N0HR257F
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CXA1820-0000-000N0HR257F CAD Model

Description

The Cree Inc. 771973-CXA1820-0000-000N0HR257F is a part of the XLamp CXA1820 series.

  • Color: White and Cool
  • Type: Chip on board (COB)
  • Configuration: Square
  • Maximum Current: 1.05A
  • Viewing Angle: 115 degrees
  • Forward Voltage (Vf) (Typ): 37V
  • CCT (K): 5700K 4-Step MacAdam Ellipse
  • Lumens/Watt @ Current - Test: 123 lm/W
  • CRI (Color Rendering Index): 80
  • Flux @ Current/Temperature - Test: 2510 lm (2420 lm ~ 2600 lm) @ 85°C
  • LES Diameter: 12.00mm
  • Dimension: 17.85mm L x 17.85mm W
  • Supply and Demand Status: Balanced
