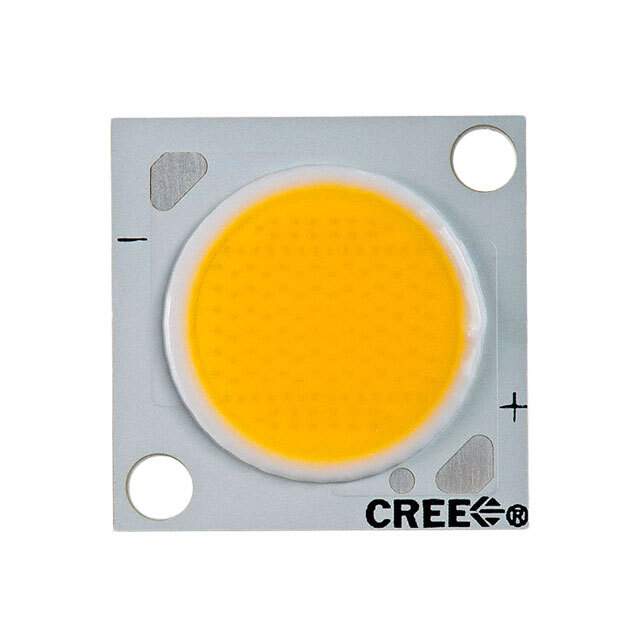

CXA2011-0000-000P00H040F Real Image
Same model may have multiple batches, images only for reference.

CXA2011-0000-000P00H040F

Part No CXA2011-0000-000P00H040F
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description Cree XLamp CXA2011 LED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA2011
Packaging Tube
Part Status Obsolete(EOL)
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 4-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 970 lm (900 lm ~ 1040 lm)
Current - Test 270mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 40V
Lumens/Watt @ Current - Test 90 lm/W
Current - Max 1A
CRI (Color Rendering Index) 70
Viewing Angle 120°
Size 22.00mm L x 22.00mm W
Height 2.28mm
Lens Type Flat
Win Source Part Number 1163793-CXA2011-0000-000P00H040F
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Limited
Family Name CXA2011-0000-000P00H040F
Introduction Date April 12, 2011
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CXA2011-0000-000P00H040F CAD Model

Description

The Cree XLamp CXA2011 chip on board (COB) is a high-performance white and neutral LED that provides a viewing angle of 120 degrees.

  • Viewing Angle: 120 degrees
  • Configuration: square
  • Package: tube
  • Status: obsolete (EOL)
  • Voltage-Forward (Vf): 40V
  • Current-Max: 1A
  • Current-Test: 270mA
  • Height: 2.28mm
  • Size: 22.00mm L x 22.00mm W
  • Lens Type: flat
  • CCT (K): 4000K 4-Step MacAdam Ellipse
  • CRI (Color Rendering Index): 70
  • Lumens/Watt: 90 lm/W @ current-test
  • Flux @ Current/Temperature-Test: 970 lm (900 lm ~ 1040 lm)
  • Temperature-Test: 85 degrees Celsius
  • Halogen-Free: compliant
  • Popularity: medium
