Same model may have multiple batches, images only for reference.

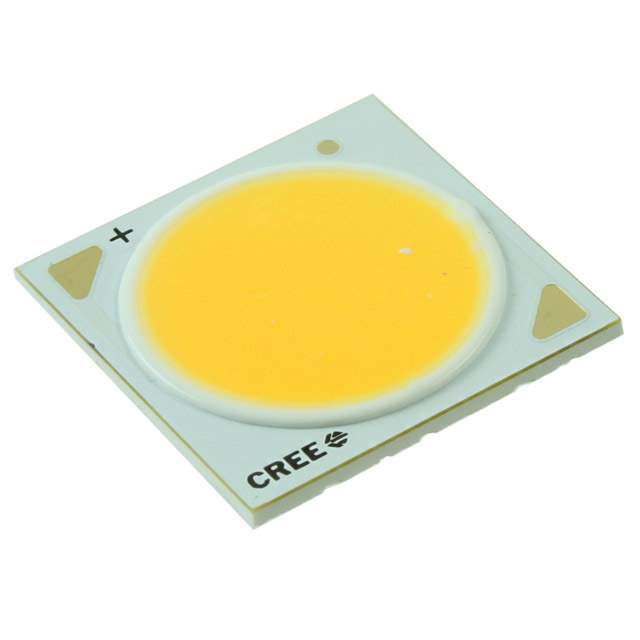

CXA2530-0000-000N0HT450G Real Image
Same model may have multiple batches, images only for reference.

CXA2530-0000-000N0HT450G

Part No CXA2530-0000-000N0HT450G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA2530 5000K WHITE SMD / Chip On Board LED Lighting Module
Datasheet
CXA2530-0000-000N0HT450G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA2530
Packaging Tray
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5000K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 3560 lm (3440 lm ~ 3680 lm)
Current - Test 800mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 124 lm/W
Current - Max 1.6A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 23.85mm L x 23.85mm W
Height 1.70mm
Light Emitting Surface (LES) 19.00mm Diameter
Lens Type Flat
Win Source Part Number 771981-CXA2530-0000-000N0HT450G
Popularity Medium
Supply and Demand Status Limited
Family Name CXA2530-0000-000N0HT450G
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CXA2530-0000-000N0HT450G CAD Model

Description

The Cree Inc. 771981-CXA2530-0000-000N0HT450G is a chip on board (COB) type component that belongs to the XLamp CXA2530 series.

  • Color: White, Cool
  • Maximum Current: 1.6A
  • Configuration: Square
  • Viewing Angle: 115 degrees
  • Voltage-Forward (Vf): 36V
  • Current-test: 800mA
  • Packaging: Tray
  • Height: 1.70mm
  • Popularity: Medium
  • Supply and Demand Status: Limited
