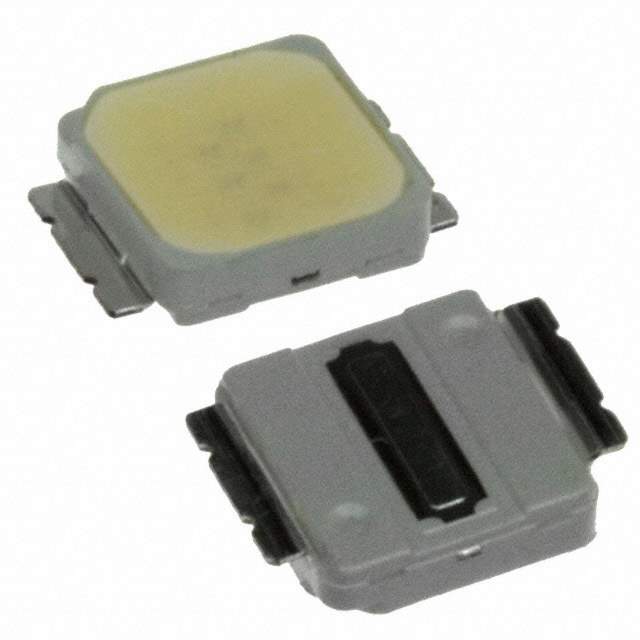

MX6AWT-A1-0000-000AF7

Part No MX6AWT-A1-0000-000AF7
Manufacturer Cree Inc.
Catalog LED Lighting - White
Description XLamp MX Family LEDs
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp MX-6
Packaging Reel - TR
Color White, Warm
CCT (K) 3200K
Flux @ 25°C, Current - Test 91 lm (87 lm ~ 94 lm)
Current - Test 300mA
Voltage - Forward (Vf) (Typ) 3.3V
Lumens/Watt @ Current - Test 92 lm/W
CRI (Color Rendering Index) 80 (Typ)
Current - Max 1A
Viewing Angle 120°
Mounting SMD
Package 2-SMD, Gull Wing, Exposed Pad
Manufacturer Package SMD
Size 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum) 0.058" (1.48mm)
Thermal Resistance of Package 5°C/W
Win Source Part Number 1229007-MX6AWT-A1-0000-000AF7
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Balance
Family Name MX6AWT-A1-0000-000AF7
Introduction Date November 12, 2010
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian MX6AWT-A1-0000-000AF7 CAD Model

Description

MX6AWT-A1-0000-000AF7 from Cree Inc. is a white LED device positioned for designs that require dependable solid-state illumination in compact electronic assemblies. Parts in the LED Lighting - White category are commonly evaluated for indicator lighting, backlighting, architectural lighting modules, general illumination subassemblies, and industrial or commercial lighting products where efficiency, consistency, and long operating life are important design goals. For engineers and sourcing teams, this part may be relevant when maintaining existing Cree-based lighting platforms or qualifying alternatives for production builds. Because the exact electrical, optical, and package details were not provided here, system designers should confirm fit, thermal behavior, and drive conditions using the official datasheet before release. Lifecycle status for MX6AWT-A1-0000-000AF7 is currently listed as unknown, so procurement teams should verify current factory support and distributor availability. RoHS compliance information is not available in the provided data and should be confirmed directly with Cree Inc. or authorized channel documentation before compliance-sensitive use.
