The C3M0021120K is a silicon carbide (SiC) MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) from Cree/Wolfspeed. It is designed for high-power, high-frequency switching applications where efficiency and reliability are critical. SiC MOSFETs offer significant advantages over traditional silicon MOSFETs, including lower switching losses, higher operating temperatures, and faster switching speeds.

Applications

• High-frequency power supplies.
• Solar inverters.
• Electric vehicle (EV) chargers.
• Motor drives.
• Induction heating.
• Welding equipment.

Features

• Silicon carbide (SiC) technology: Enables high-frequency and high-temperature operation.
• Low on-resistance (Rds(on)): Minimizes conduction losses.
• Fast switching speed: Reduces switching losses.
• High blocking voltage: Provides robust protection against voltage spikes.
• Avalanche ruggedness: Withstands avalanche conditions.
• Low gate charge: Reduces gate drive power requirements.

Benefits

• Increased efficiency in power electronic systems.
• Reduced system size and weight.
• Improved thermal performance.
• Higher operating frequencies.
• Enhanced system reliability.

Additional Details

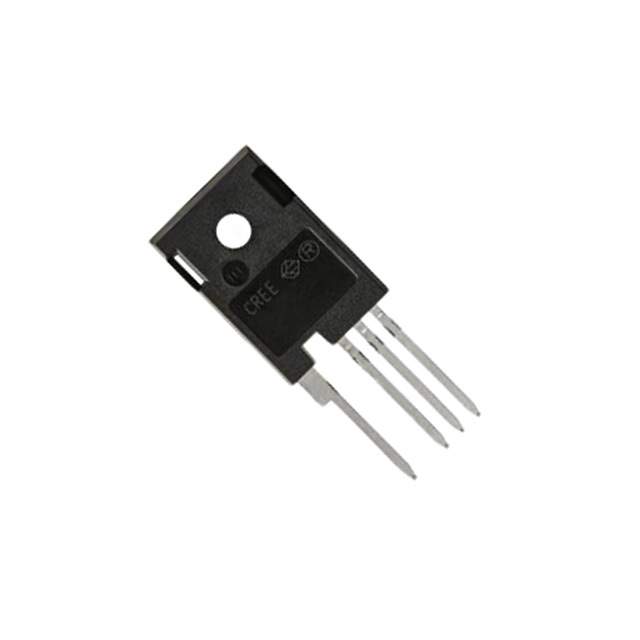

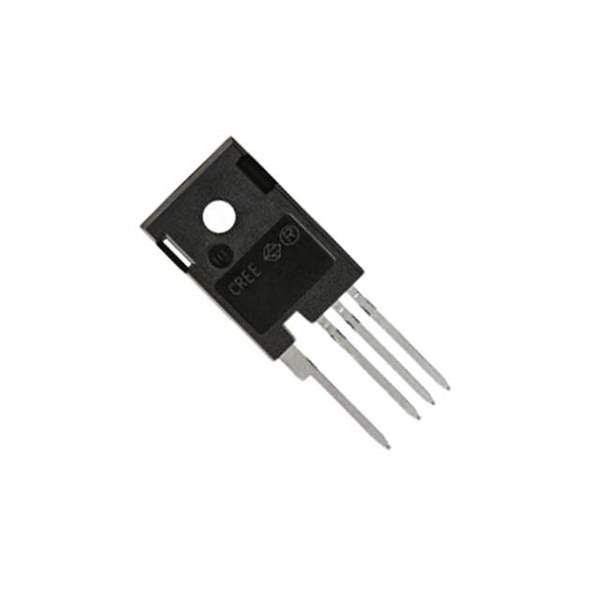

The C3M0021120K features a blocking voltage of 1200V and a typical on-resistance of 21 mΩ. The gate charge is typically low, reducing the power required to drive the MOSFET. The device is designed for operation at high temperatures, typically up to 150°C or higher. Proper heat sinking is essential to dissipate heat generated by the MOSFET. The package type is typically a TO-247 or similar high-power package. SiC MOSFETs have significantly lower switching losses compared to silicon MOSFETs, especially at high frequencies. The higher blocking voltage allows for higher bus voltages, reducing current requirements. The avalanche ruggedness provides added protection against voltage transients. This MOSFET is ideal for applications where efficiency, power density, and reliability are critical. Cree/Wolfspeed is a leader in SiC technology and provides detailed datasheets and application notes to assist designers in using their MOSFETs.
