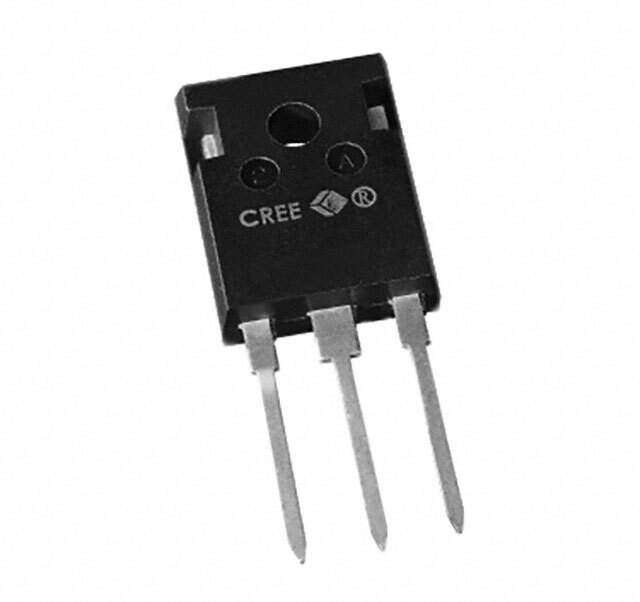

The Wolfspeed C3M0032120D is a SiCFET (Silicon Carbide) N-channel FET with a drain-to-source voltage (Vdss) of 1200V and a continuous drain current (Id) of 63A (Tc) @ 25°C.

• Drain-to-Source Voltage (Vdss): 1200V
• Continuous Drain Current (Id): 63A (Tc) @ 25°C
• Maximum On-Resistance (Rds On): 43mOhm @ 40A, 15V
• Gate Threshold Voltage (Vgs(th)): 3.6V @ 11.5mA
• Power Dissipation (Max): 283W (Tc)
• Gate Charge (Qg) (Max) @ Vgs: 114 nC @ 15 V
• Input Capacitance (Ciss) (Max) @ Vds: 3357pF @ 1000V
• Package: TO-247-3
• RoHS3 Compliant: Yes
