Same model may have multiple batches, images only for reference.

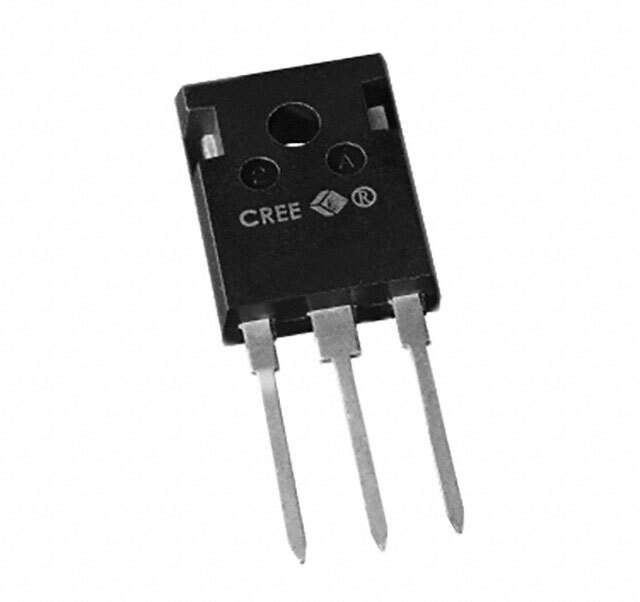

C3M0075120D Real Image
Same model may have multiple batches, images only for reference.

C3M0075120D

Part No C3M0075120D
Manufacturer Cree/Wolfspeed
Catalog Transistors - FETs, MOSFETs - RF
Description SICFET N-CH 1200V 30A TO247-3 / N-Channel 1200 V 30A (Tc) 113.6W (Tc) Through Hole TO-247-3
Datasheet
C3M0075120D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer Wolfspeed, Inc.
Packaging Tube
FET Type N-Channel
Technology SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 1200 V
Current - Continuous Drain (Id) @ 25°C 30A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 15V
Rds On (Max) @ Id, Vgs 90mOhm @ 20A, 15V
Vgs(th) (Max) @ Id 4V @ 5mA
Gate Charge (Qg) (Max) @ Vgs 54 nC @ 15 V
Vgs (Max) +19V, -8V
Input Capacitance (Ciss) (Max) @ Vds 1350 pF @ 1000 V
Power Dissipation (Max) 113.6W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Through Hole
Supplier Device Package TO-247-3
Case / Package TO-247-3
Base Product Number C3M0075120
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number 1697-C3M0075120D,C3M0075120D-ND,-3312-C3M0075120D
Standard Package 30
Win Source Part Number 1325252-C3M0075120D
Ultra Librarian 3D Model Ultra Librarian C3M0075120D CAD Model

Description

The Wolfspeed, Inc. C3M0075120D is a high-performance N-Channel SiCFET (Silicon Carbide) transistor that is designed to provide high performance and stability.

  • Maximum Drain to Source Voltage: 1200V
  • Continuous Drain Current: 30A
  • Maximum Power Dissipation: 113.6W
  • Package: TO-247-3 format
  • Suitable for Use: in various electronic applications, including power supplies, filters, and amplifiers.
  • Designed to Provide: high performance and reliability, and it is built to last.
  • Compact Design and Easy Installation: this component is an ideal choice for anyone looking for a reliable and high-performance electronic component.
