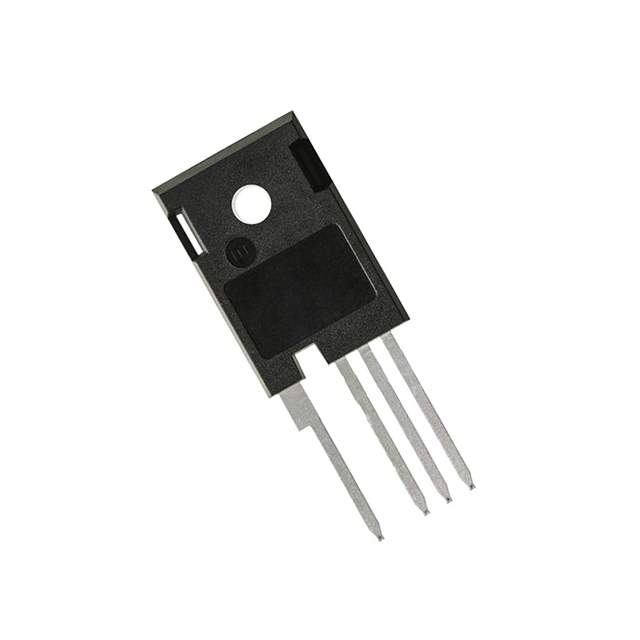

Same model may have multiple batches, images only for reference.

C3M0075120K

Name: C3M0075120K
Brand: Cree/Wolfspeed
SKU: 1324541
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	C3M0075120K
Manufacturer	Cree/Wolfspeed
Catalog	Transistors - FETs, MOSFETs - RF
Description	SICFET N-CH 1200V 30A TO247-4L / N-Channel 1200 V 30A (Tc) 113.6W (Tc) Through Hole TO-247-4L
Datasheet	C3M0075120K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer	Wolfspeed, Inc.
Packaging	Tube
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	90mOhm @ 20A, 15V
Vgs(th) (Max) @ Id	4V @ 5mA
Gate Charge (Qg) (Max) @ Vgs	51 nC @ 15 V
Vgs (Max)	+19V, -8V
Input Capacitance (Ciss) (Max) @ Vds	1350 pF @ 1000 V
Power Dissipation (Max)	113.6W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	Through Hole
Supplier Device Package	TO-247-4L
Case / Package	TO-247-4
Base Product Number	C3M0075120
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Part Number	C3M0075120K-ND,1697-C3M0075120K,-3312-C3M0075120K
Standard Package	30
Win Source Part Number	1324541-C3M0075120K
Ultra Librarian 3D Model	Ultra Librarian C3M0075120K CAD Model

Alternative Products

Description

The Wolfspeed C3M0075120K is an N-Channel SiCFET transistor with a drain to source voltage of 1200V and a continuous drain current rating of 30A @ 25°C.

Drain to Source Voltage: 1200V
Continuous Drain Current: 30A @ 25°C
Maximum On-Resistance: 90mOhm @ 20A and 15V gate-source voltage
Packaging: TO-247-4
Gate Charge: 51nC @ 15V gate-source voltage
