Same model may have multiple batches, images only for reference.

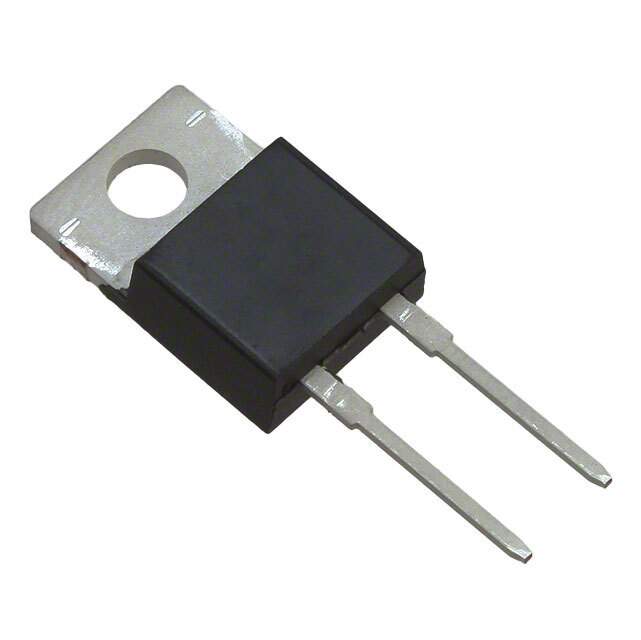

CSD01060A Real Image
Same model may have multiple batches, images only for reference.

CSD01060A

Part No CSD01060A
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 600V 2.2A TO220-2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 8 Weeks
Features Diode Silicon Carbide Schottky 600 V 4A (DC) Through Hole TO-220-2
Manufacturer Cree/Wolfspeed
Series Zero Recovery™
Package Tube
Speed No Recovery Time > 500mA (Io)
Mounting Through Hole
Package TO-220-2
Case / Package TO-220-2
Family Name CSD01060
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 50
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 867348-CSD01060A
Ultra Librarian 3D Model Ultra Librarian CSD01060A CAD Model

Description

The Cree/Wolfspeed CSD01060A is a Silicon Carbide Schottky diode that comes in a TO-220-2 package.

  • Package: TO-220-2
  • Maximum Forward Voltage: 1.8V @ 2A
  • Reverse Voltage: 600V
  • Average Rectified Current: 4A
  • Reverse Recovery Time: 0ns
  • Application: Discrete semiconductor products
  • Supply and Demand Status: Limited
