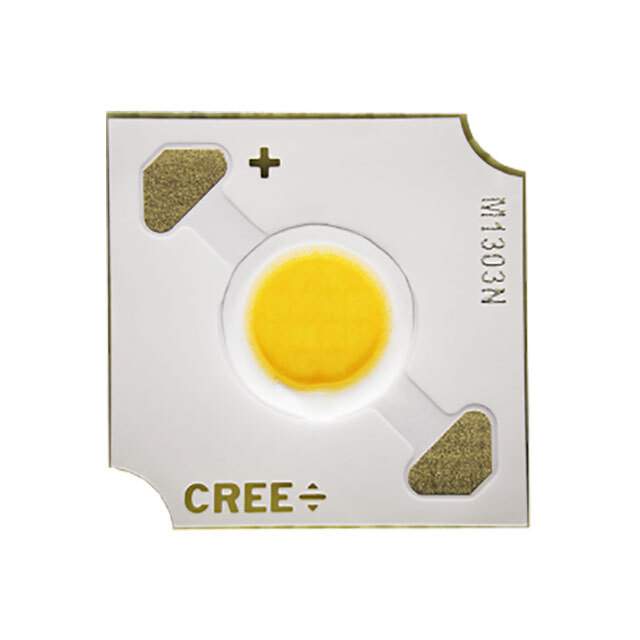

CMA1303-0000-000C0H0A40G Real Image
Same model may have multiple batches, images only for reference.

CMA1303-0000-000C0H0A40G

Part No CMA1303-0000-000C0H0A40G
Manufacturer CreeLED, Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CMA1304 4000K WHT SMD / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Neutral Square
Datasheet
CMA1303-0000-000C0H0A40G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr CreeLED, Inc.
Series XLamp® CMA1303
Package Tray
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 823lm (Typ)
Current - Test 700mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 9.35V
Lumens/Watt @ Current - Test 126 lm/W
Current - Max 1.4A
CRI (Color Rendering Index) 80
Viewing Angle 116°
Dimension 13.35mm L x 13.35mm W
Height 1.70mm
Light Emitting Surface (LES) 4.50mm Dia
Lens Type Flat
Base Product Number CMA1303
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 25
Win Source Part Number 1074860-CMA1303-0000-000C0H0A40G
Ultra Librarian 3D Model Ultra Librarian CMA1303-0000-000C0H0A40G CAD Model

Description

The CMA1303-0000-000C0H0A40G from CreeLED, Inc. is a Chip On Board (COB) LED module that emits white or neutral light.

  • Maximum Current: 1.4A
  • Forward Voltage: 9.35V
  • Viewing Angle: 116°
  • Luminous Flux: 823lm (typical) @ 700mA and a temperature of 85°C
  • Light Emitting Surface Diameter: 4.50mm
  • Dimension: 13.35mm x 13.35mm
  • Packaging: Tray
  • Standard Package: 25
  • CCT: 4000K 3-Step MacAdam Ellipse
  • CRI: 80
