Same model may have multiple batches, images only for reference.

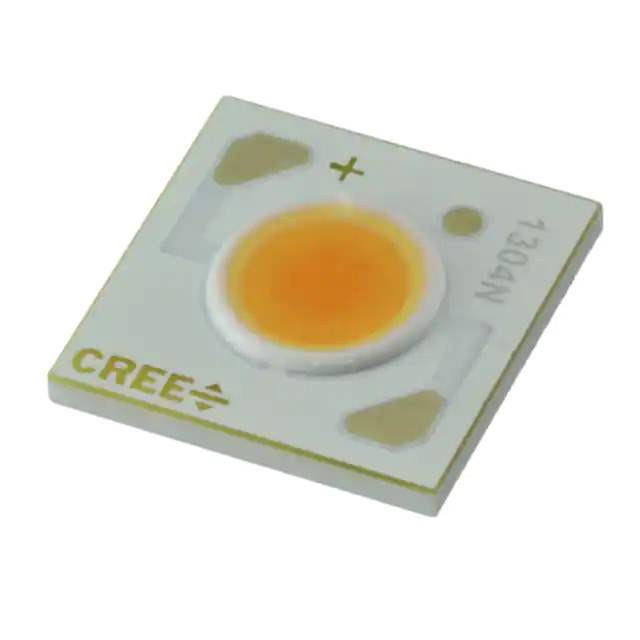

CXA1304-0000-000C00A430F Real Image
Same model may have multiple batches, images only for reference.

CXA1304-0000-000C00A430F

Part No CXA1304-0000-000C00A430F
Manufacturer CreeLED, Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB XLAMP WARM WHT SQU 3000K
Datasheet
CXA1304-0000-000C00A430F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - COBs, Engines, Modules, Strips
Mfr CreeLED, Inc.
Series XLamp® CXA1304
Package Tray
Product Status Active
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 4-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 368lm (355lm ~ 380lm)
Current - Test 400mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 9V
Lumens/Watt @ Current - Test 102 lm/W
Current - Max 1A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Size / Dimension 13.35mm L x 13.35mm W
Height 1.70mm
Light Emitting Surface (LES) 6.00mm Dia
Lens Type Flat
Base Product Number CXA1304
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 848346-CXA1304-0000-000C00A430F
Ultra Librarian 3D Model Ultra Librarian CXA1304-0000-000C00A430F CAD Model

Description

The 848346-CXA1304-0000-000C00A430F is a COB (Chip On Board) module from the XLamp® CXA1304 series and is from CreeLED, Inc.

  • Series: XLamp® CXA1304
  • Application: Optoelectronic
  • Light Color: White, Warm
  • Size: 13.35mm L x 13.35mm W
  • Maximum Current: 1A
  • Shape: Square
  • Viewing Angle: 115°
  • Forward Voltage (Vf): 9V
  • Testing Current: 400mA
  • Operating Temperature (Max): 85°C
  • Product Status: Active
  • Luminous Flux: 368lm (355lm ~ 380lm) @ 400mA, 85°C
