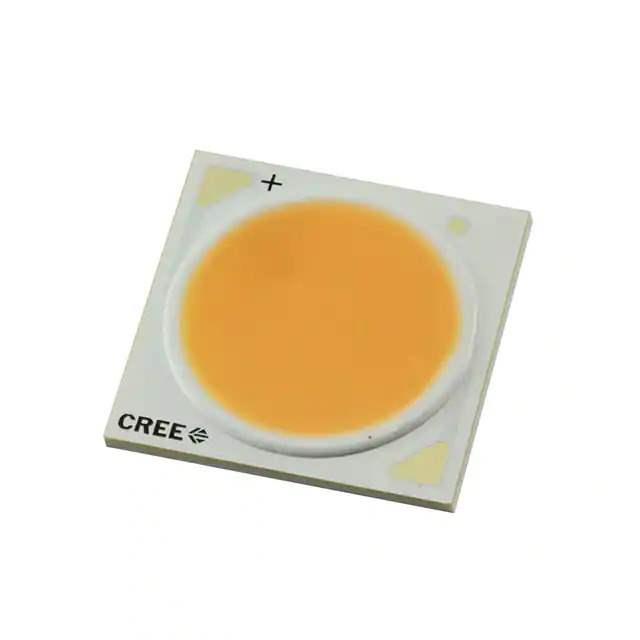

CXA1507-0000-000N00F430F Real Image
Same model may have multiple batches, images only for reference.

CXA1507-0000-000N00F430F

Part No CXA1507-0000-000N00F430F
Manufacturer CreeLED, Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB XLAMP WARM WHT SQU 3000K
Datasheet
CXA1507-0000-000N00F430F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - COBs, Engines, Modules, Strips
Mfr CreeLED, Inc.
Series XLamp® CXA1507
Package Tray
Product Status Active
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 4-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 755lm (730lm ~ 780lm)
Current - Test 200mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 37V
Lumens/Watt @ Current - Test 102 lm/W
Current - Max 375mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Size / Dimension 15.85mm L x 15.85mm W
Height 1.70mm
Light Emitting Surface (LES) 8.90mm Dia
Lens Type Flat
Base Product Number CXA1507
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 581073-CXA1507-0000-000N00F430F
Ultra Librarian 3D Model Ultra Librarian CXA1507-0000-000N00F430F CAD Model

Description

The Win Source Part Number 581073-CXA1507-0000-000N00F430F is an optoelectronic component from the XLamp® CXA1507 series.

  • Series: XLamp® CXA1507
  • Type: Chip On Board (COB)
  • Color: Warm White
  • Package: Tray
  • Size: 15.85mm L x 15.85mm W
  • Height: 1.70mm
  • Standard Package: 100 pieces
  • Maximum Current: 375mA
  • Viewing Angle: 115°
  • Forward Voltage: 37V
  • Test Current: 200mA
  • CCT: 3000K
  • MacAdam Ellipse: 4-Step
  • Luminous Efficiency: 102 lm/W @ test current
  • CRI: 80
  • Temperature @ Test: 85°C
  • LES Diameter: 8.90mm
  • ECCN: EAR99
  • Status: Active
  • Luminous Flux: 755lm (730lm ~ 780lm) @ current/temperature
