Same model may have multiple batches, images only for reference.

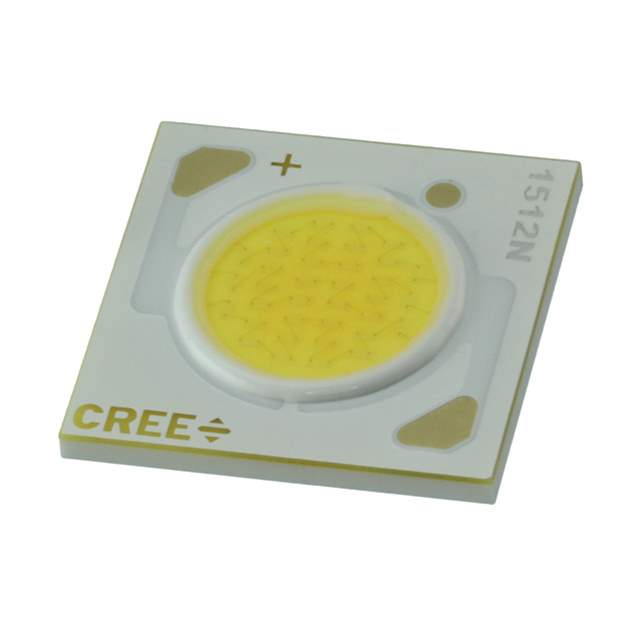

CXA1512-0000-000N0UH230H Real Image
Same model may have multiple batches, images only for reference.

CXA1512-0000-000N0UH230H

Part No CXA1512-0000-000N0UH230H
Manufacturer CreeLED, Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED CXA1512 8.9MM WHT / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Datasheet
CXA1512-0000-000N0UH230H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr CreeLED, Inc.
Series XLamp® CXA1512
Package Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 2-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 935lm (900lm ~ 970lm)
Current - Test 350mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 37V
Lumens/Watt @ Current - Test 72 lm/W
Current - Max 600mA
CRI (Color Rendering Index) 90
Viewing Angle 115°
Dimension 15.85mm L x 15.85mm W
Height 1.70mm
Light Emitting Surface (LES) 8.90mm Dia
Lens Type Flat
Base Product Number CXA1512
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 100
Win Source Part Number 994900-CXA1512-0000-000N0UH230H
Ultra Librarian 3D Model Ultra Librarian CXA1512-0000-000N0UH230H CAD Model

Description

The XLamp® CXA1512 is a Chip on Board (COB) type LED module designed for optoelectronics applications such as LED lighting.

  • Series: XLamp®
  • Type: Chip on Board (COB)
  • Application: Optoelectronics (LED Lighting)
  • Configuration: Square
  • LED Color: White & Warm
  • Viewing Angle: 115°
  • Forward Voltage (Vf): 37V
  • Current Rating: 600mA
  • Test Current: 350mA
  • Height: 1.70mm
  • LES Diameter: 8.90mm
  • CRI: 90
  • CCT: 3000K 2-Step MacAdam Ellipse
  • Luminous Flux: 935lm (900lm ~ 970lm) @ Current/Temperature
  • Lumens/Watt: 72 lm/W @ Current-Test
  • RoHS Compliant: Yes
  • Package: Tray
  • Standard Package: 100
