Same model may have multiple batches, images only for reference.

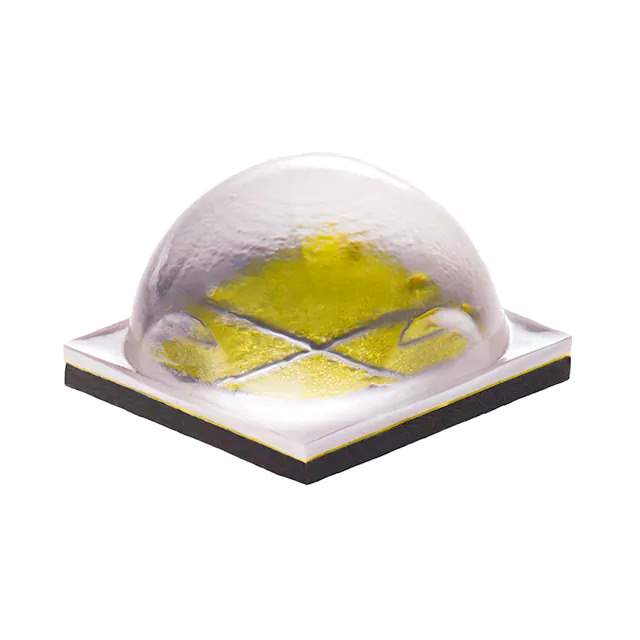

XHP70A-00-0000-0D00M40E5 Real Image
Same model may have multiple batches, images only for reference.

XHP70A-00-0000-0D00M40E5

Part No XHP70A-00-0000-0D00M40E5
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED XLAMP XH-P70 WHITE SMD / LED Lighting Xlamp? XHP70 White, Neutral 4000K 6V, 12V 2.1A, 1.05A 120° 2828 (7070 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - White LED Lighting
Mfr CreeLED, Inc.
Series Xlamp® XHP70
Package Tape & Reel
Product Status Obsolete
Color White, Neutral
CCT (K) 4000K
Flux @ 85°C, Current - Test 1538lm (1485lm ~ 1590lm)
Current - Test 2.1A, 1.05A
Voltage - Forward (Vf) (Typ) 6V, 12V
Lumens/Watt @ Current - Test 122 lm/W
Current - Max 4.8A, 2.4A
Viewing Angle 120°
Mounting Type Surface Mount
Package / Case 2828 (7070 Metric)
Supplier Device Package SMD
Size / Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.182" (4.62mm)
Thermal Resistance of Package 0.9°C/W
Base Product Number XHP70A
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 904009-XHP70A-00-0000-0D00M40E5
Ultra Librarian 3D Model Ultra Librarian XHP70A-00-0000-0D00M40E5 CAD Model

Description

The Xlamp XHP70 is a white LED lighting component designed for optoelectronics applications.

  • Size: 0.276" x 0.276" (7.00mm x 7.00mm)
  • Maximum Seated Height: 0.182" (4.62mm)
  • Maximum Current: 4.8A or 2.4A
  • Viewing Angle: 120°
  • Forward Voltage: 6V or 12V
  • Test Current: 2.1A or 1.05A
  • Color Temperature: 4000K
  • Flux @ Test Current: 1538lm
  • Luminous Efficacy: 122 lm/W
  • Thermal Resistance: 0.9°C/W
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • Standard Package: 1,000 pcs
  • Series: Xlamp XHP70
  • Manufacturer: CreeLED, Inc.
