Same model may have multiple batches, images only for reference.

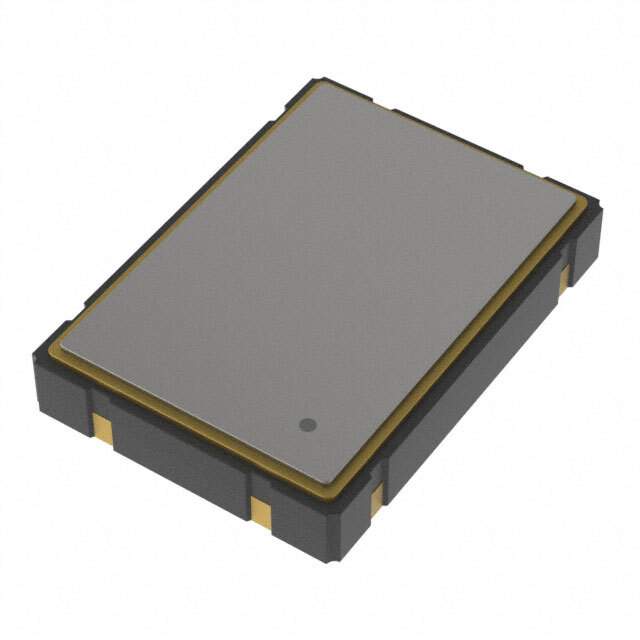

CA70C2502NLT Real Image
Same model may have multiple batches, images only for reference.

CA70C2502NLT

Part No CA70C2502NLT
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description XTAL OSC XO 25.0MHZ 3.3V SMD  /  25 MHz XO (Standard) HCMOS, TTL Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
CA70C2502NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr CTS-Frequency Controls
Series CA70
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 25 MHz
Function Enable/Disable
Output HCMOS, TTL
Voltage - Supply 3.3V
Frequency Stability ±100ppm
Temperature Range - Operating -40°C ~ 150°C
Current - Supply (Max) 40mA
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.055" (1.40mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 1050739-CA70C2502NLT
Ultra Librarian 3D Model Ultra Librarian CA70C2502NLT CAD Model

Description

The CA70C2502NLT is a crystal oscillator from CTS-Frequency Controls. The oscillator is designed for surface mount applications and comes in a tape and reel package.

  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Frequency: 25 MHz
  • Frequency Stability: ±100ppm
  • Type: XO (Standard)
  • Height - Seated (Max): 0.055" (1.40mm)
  • AEC-Q200: Yes
  • Output: HCMOS, TTL
  • Voltage - Supply: 3.3V
  • Current - Supply (Max): 40mA
  • Operating Temperature: -40°C to 150°C
  • Size / Dimension: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • RoHS: Compliant
  • REACH: Unaffected
