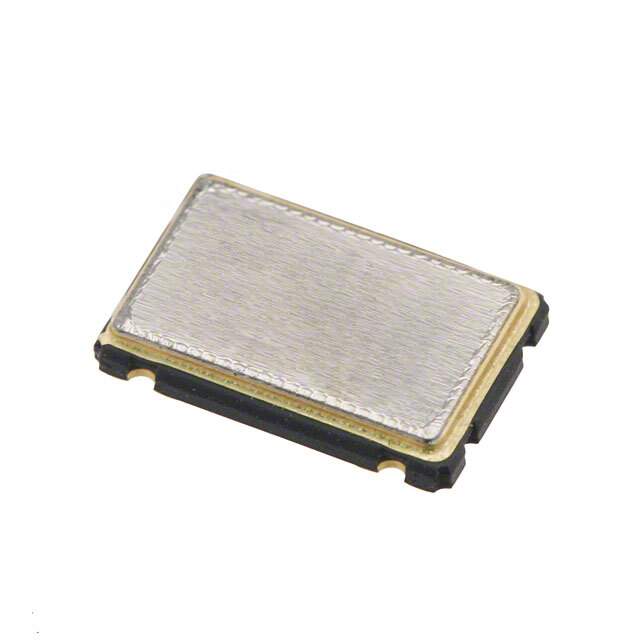

CB3-3C-5M000000 Real Image
Same model may have multiple batches, images only for reference.

CB3-3C-5M000000

Part No CB3-3C-5M000000
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description XTAL OSC XO 5.0000MHZ HCMOS TTL / 5 MHz XO (Standard) HCMOS, TTL Oscillator 5V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr CTS-Frequency Controls
Series CB3
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 5 MHz
Function Enable/Disable
Output HCMOS, TTL
Voltage - Supply 5V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 25mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.071" (1.80mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
California Prop 65 Warning Information
Win Source Part Number 1351964-CB3-3C-5M000000
Ultra Librarian 3D Model Ultra Librarian CB3-3C-5M000000 CAD Model

Description

The CB3-3C-5M000000 is an XO (Standard) type oscillator from the CB3 series of crystals, oscillators, and resonators.

  • Frequency: 5 MHz
  • Frequency Stability: ±50ppm
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • Size: 0.276 inches in length and 0.197 inches in width
  • Enable/Disable Function: Yes
  • Output: HCMOS, TTL
  • Supply Current (Max): 25mA
  • Supply Voltage (Max): 5V
  • Operating Temperature: -20°C to 70°C
