Same model may have multiple batches, images only for reference.

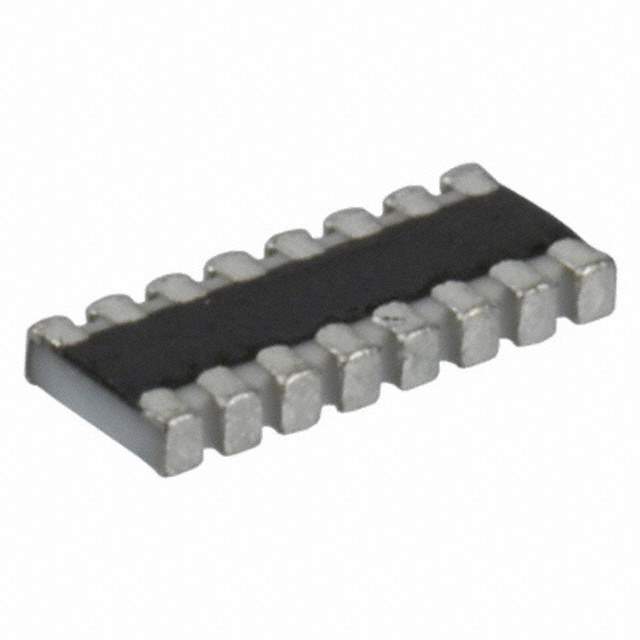

741X163221JP Real Image
Same model may have multiple batches, images only for reference.

741X163221JP

Part No 741X163221JP
Manufacturer CTS Resistor Products
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 220 OHM 1506 / 220 Ohm ±5% 63mW Power Per Element Isolated 8 Resistor Network/Array ±200ppm/°C 1506, Convex, Long Side Terminals
Datasheet
741X163221JP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr CTS Resistor Products
Series 741
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 220
Tolerance ±5%
Number of Resistors 8
Number of Pins 16
Power Per Element 63mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive AEC-Q200, DDR SDRAM, DRAM, MDDR
Mounting Type Surface Mount
Package / Case 1506, Convex, Long Side Terminals
Size / Dimension 0.156" L x 0.063" W (3.95mm x 1.60mm)
Height - Seated (Max) 0.022" (0.55mm)
Base Product Number 741X163
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
California Prop 65 Warning Information
Win Source Part Number 1338850-741X163221JP
Ultra Librarian 3D Model Ultra Librarian 741X163221JP CAD Model

Description

The CTS Resistor Products 741 series 1338850-741X163221JP is a resistor network/array that offers a resistance of 220 Ohms ±5% with a power rating of 63mW per element.

  • Resistance: 220 Ohms
  • Tolerance: ±5%
  • Power Rating: 63mW per element
  • Temperature Coefficient: ±200ppm/°C
  • Package: 1506, Convex, Long Side Terminals
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C to 125°C
  • Height: 0.022” (0.55mm)
  • ECCN: EAR99
  • REACH: Unaffected
  • Applications: Automotive AEC-Q200, DDR SDRAM, DRAM, MDDR
