Same model may have multiple batches, images only for reference.

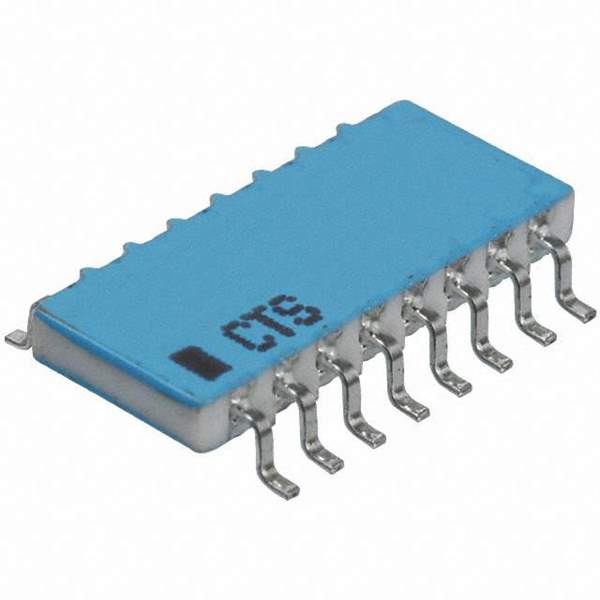

767163105G Real Image
Same model may have multiple batches, images only for reference.

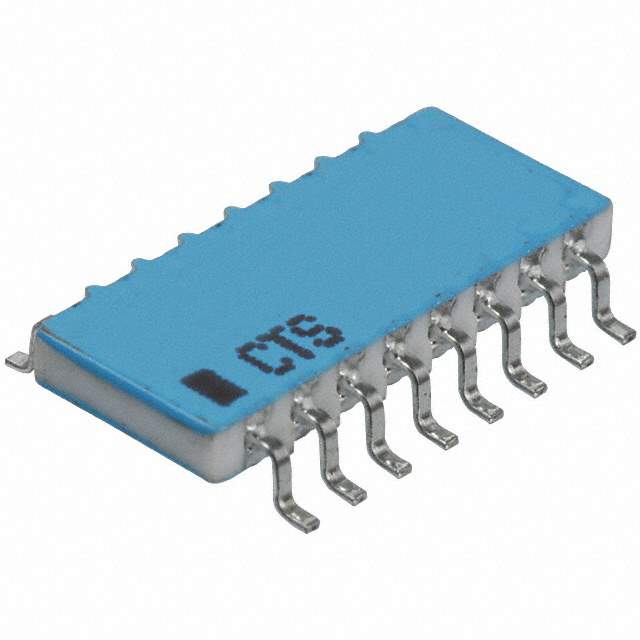

767163105G

Part No 767163105G
Manufacturer CTS Resistor Products
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 1M OHM 16SOIC
Datasheet
767163105G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Features 1M Ohm ±2% 200mW Power Per Element Isolated 8 Resistor Network/Array ±100ppm/°C 16-SOIC (0.220", 5.59mm Width)
Manufacturer CTS Resistor Products
Series 767
Package Tube
Part Status Obsolete
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package 16-SOIC (0.220", 5.59mm Width)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0010
Other Part Number 767-163-105, 767-163-R1M, 767-163-R1MEG
Quantity per package 43
Popularity High
Supply and Demand Status Balance
Win Source Part Number 908398-767163105G
Ultra Librarian 3D Model Ultra Librarian 767163105G CAD Model

Description

The CTS Resistor Products 908398-767163105G is an Isolated Circuit Type Resistor Network/Array with a resistance of 1M Ohm and a tolerance of ±2%.

  • Circuit Type: Isolated
  • Resistance: 1M Ohm
  • Tolerance: ±2%
  • Resistors: 8 resistors
  • Pins: 16 pins
  • Power Per Element: 200mW
  • Temperature Range: -55°C to 125°C
  • Mounting: Surface mount device (SMD)
  • Package Size: 16-SOIC (0.220 inches, 5.59mm width)
  • Resistor Type: Obsolete
  • Popularity: High
