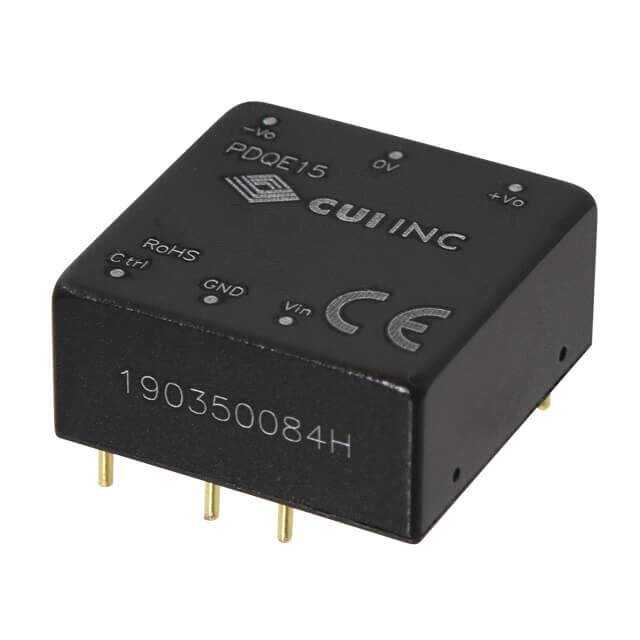

Same model may have multiple batches, images only for reference.

PDQE15-Q48-S5-D

Name: PDQE15-Q48-S5-D
Brand: CUI Inc.
SKU: 1350981
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PDQE15-Q48-S5-D
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 15W / Isolated Module DC DC Converter 1 Output 5V 3A 18V - 75V Input
Datasheet	PDQE15-Q48-S5-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	PDQE15-D (15W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Current - Output (Max)	3A
Power (Watts)	15 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 95°C (With Derating)
Efficiency	90%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
Approval Agency	CB Scheme, EN, IEC, UL
Standard Number	55024; 55032 Class A; 62368-1
Base Product Number	PDQE15
Standard Package	19
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1350981-PDQE15-Q48-S5-D
Ultra Librarian 3D Model	Ultra Librarian PDQE15-Q48-S5-D CAD Model

Alternative Products

Description

The PDQE15-D (15W) isolated module DC-DC converter from CUI Inc. is a power supply board mount converter that is ideal for ITE (Commercial) applications.

Application: ITE (Commercial)
Isolation: 1.5 kV
Efficiency: 90%
Current Output (Max): 3A
Input Voltage: 18V to 75V
Number of Outputs: 1
Output Voltage: 5V
Size: 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
Packaging: Tube
Mounting Type: Through Hole
Package/Case: 6-DIP Module
Operating Temperature: -40°C to 95°C (with derating)
Approvals: CB Scheme, EN, IEC, and UL
Standards Compliance: 55024, 55032 Class A, and 62368-1
