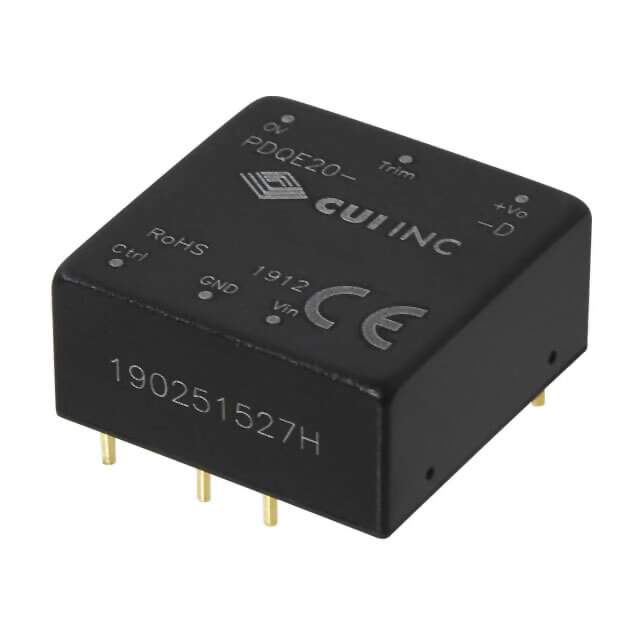

Same model may have multiple batches, images only for reference.

PDQE20-Q24-S5-D

Name: PDQE20-Q24-S5-D
Brand: CUI Inc.
SKU: 1338454
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PDQE20-Q24-S5-D
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 20W / Isolated Module DC DC Converter 1 Output 5V 4A 9V - 36V Input
Datasheet	PDQE20-Q24-S5-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	PDQE20-D (20W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	4A
Power (Watts)	20 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 95°C (With Derating)
Efficiency	90%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
Approval Agency	CB Scheme, EN, IEC, UL
Standard Number	55024; 55032 Class A; 62368-1
Base Product Number	PDQE20
Standard Package	19
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1338454-PDQE20-Q24-S5-D
Ultra Librarian 3D Model	Ultra Librarian PDQE20-Q24-S5-D CAD Model

Alternative Products

Description

The PDQE20-D (20W) is an isolated module DC-DC converter that is designed for ITE (Commercial) applications.

Application: ITE (Commercial)
Power (Watts): 20W
Voltage - Output: 5V
Voltage - Isolation: 1.5kV
Efficiency: 90%
Mounting Type: Through Hole
Package / Case: 6-DIP Module
Operating Temperature: -40°C ~ 95°C (with derating)
Output Count: 1
Current - Output (Max): 4A
Voltage - Input (Min): 9V
Voltage - Input (Max): 36V
Features: Remote On/Off, OCP, OVP, SCP
Approvals: CB Scheme, EN, IEC, UL
Standard Package: 19
