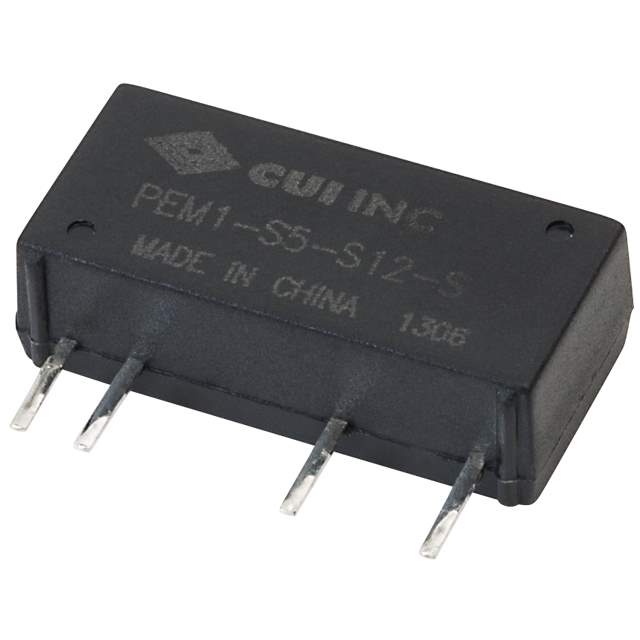

PEM1-S12-S12-S Real Image
Same model may have multiple batches, images only for reference.

PEM1-S12-S12-S

Part No PEM1-S12-S12-S
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 1W / Isolated Module DC DC Converter 1 Output 12V 83mA 10.8V - 13.2V Input
Datasheet
PEM1-S12-S12-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer CUI Inc.
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 12V
Current - Output (Max) 83mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 105°C
Efficiency 80%
Mounting Through Hole
Case / Package 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm)
Approval Agency CB Scheme, EN, IEC, UL
Standard Number 55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3
Base Product Number PEM1-S12
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 102-2762,PEM1S12S12S
Standard Package 25
Win Source Part Number 1320664-PEM1-S12-S12-S
Ultra Librarian 3D Model Ultra Librarian PEM1-S12-S12-S CAD Model

Description

The PEM1-S12-S12-S from CUI Inc. is an isolated module DC-DC converter with a power output of 1 W.

  • Package: 7-SIP Module
  • Leads: 4
  • Application: Commercial ITE
  • Voltage Isolation: 3 kV
  • Feature: SCP
  • Output: Single
  • Maximum Output Current: 83mA
  • Input Voltage: 10.8V to 13.2V
  • Output Voltage: 12V
  • Efficiency: 80%
  • Temperature Range: -40°C to 105°C
  • RoHS Compliant: Yes
  • Approval: UL, EN, CB Scheme
  • Package Contains: 25 units
