Same model may have multiple batches, images only for reference.

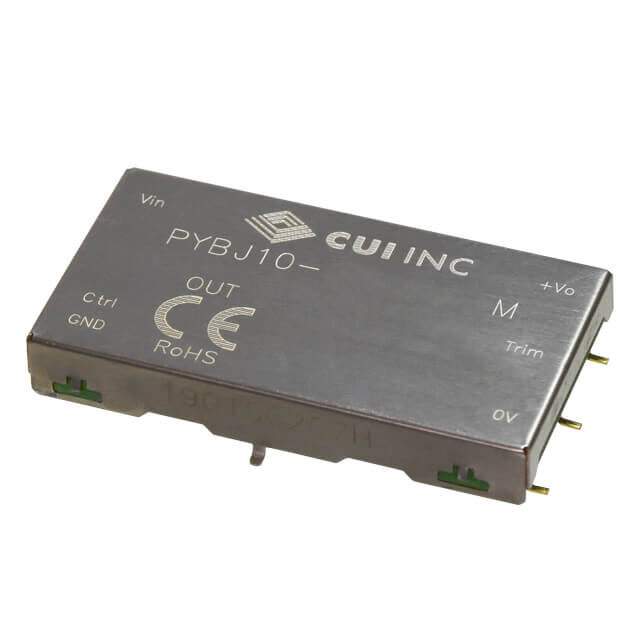

PYBJ10-Q24-S15-M Real Image
Same model may have multiple batches, images only for reference.

PYBJ10-Q24-S15-M

Part No PYBJ10-Q24-S15-M
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 10W / Isolated Module DC DC Converter 1 Output 15V 667mA 9V - 36V Input
Datasheet
PYBJ10-Q24-S15-M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr CUI Inc.
Series PYBJ10 (10W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Current - Output (Max) 667mA
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 88%
Mounting Type Surface Mount
Package / Case 6-SMD Module
Size / Dimension 1.59" L x 0.87" W x 0.28" H (40.2mm x 22.0mm x 7.0mm)
Approval Agency CB Scheme, IEC, UL
Standard Number 62368-1
Base Product Number PYBJ10
Standard Package 22
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1350375-PYBJ10-Q24-S15-M
Ultra Librarian 3D Model Ultra Librarian PYBJ10-Q24-S15-M CAD Model

Description

The PYBJ10-Q24-S15-M is a DC-DC converter that belongs to the category of power supplies.

  • Product Category: Power supplies
  • Type: Isolated module
  • Power: 10 W
  • Voltage Isolation: 1.5 kV
  • Current Output (Max): 667mA
  • Voltage Input (Min): 9V
  • Voltage Input (Max): 36V
  • Voltage Output: 15V
  • Efficiency: 88%
  • Package: Tray
  • Mounting Type: Surface mount
  • Operating Temperature: -40°C ~ 85°C (with derating)
  • Manufacturer: CUI Inc.
  • Base Product Number: PYBJ10
