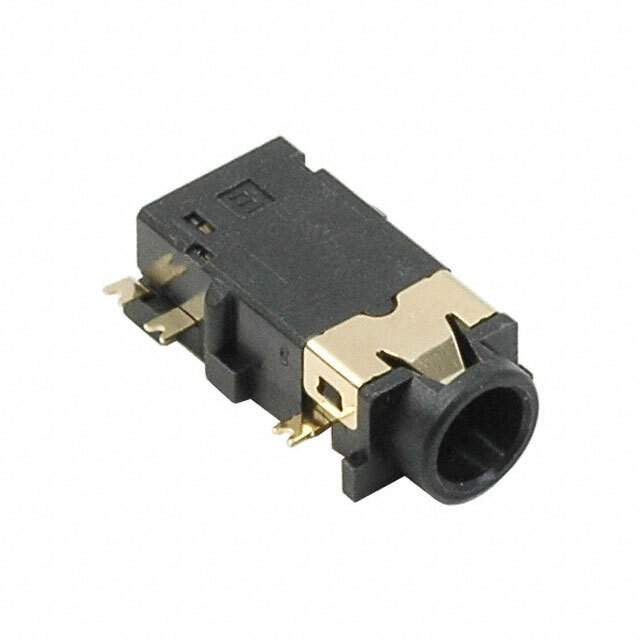

SJ-43504-SMT-TR Real Image
Same model may have multiple batches, images only for reference.

SJ-43504-SMT-TR

Part No SJ-43504-SMT-TR
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK 4COND 3.5MM SMD R/A / 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Datasheet
SJ-43504-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel Connectors>Audio Connectors
Manufacturer CUI Devices
Packaging Reel - TR
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter 0.142" (3.60mm)
Number of Positions/Contacts 4 Conductors, 6 Contacts
Internal Switch(s) Two Switches
Mounting Board Cutout, Surface Mount, Right Angle
Termination Solder
Shielding Shielded
Temperature Range - Operating -20°C ~ 85°C
Voltage - Rated 12VDC
Current Rating (Amps) 1 A
Mating Length/Depth 0.551" (14.00mm)
Contact Material - Plating Gold
Body Material Brass
Body Color Gold, Black
Housing Material Polyamide (PA6T), Nylon 6T
Contact Material Copper Alloy
Base Product Number SJ-43
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number CP-43504SJDKR,SJ-43504-SMT,CP-43504SJTR,SJ43504SMTTR,CP-43504SJCT,045-0007R
Standard Package 1,050
Win Source Part Number 1333979-SJ-43504-SMT-TR
Ultra Librarian 3D Model Ultra Librarian SJ-43504-SMT-TR CAD Model

Description

The SJ-43504-SMT-TR phone jack connector by CUI Devices is a high-quality product that has a shielded termination with a solder contact material.

  • Gender: Female
  • Material: Brass
  • Housing Material: Polyamide (PA6T), Nylon 6T
  • Packaging: Reel - TR
  • Connector Type: Phone Jack
  • Conductor: 4
  • Contact: 6
  • Internal Switches: Two
  • Voltage Rated: 12VDC
  • Operating Temperature Range: -20°C ~ 85°C
  • Supply and Demand Status: Balanced
  • Standard Package: 1,050
