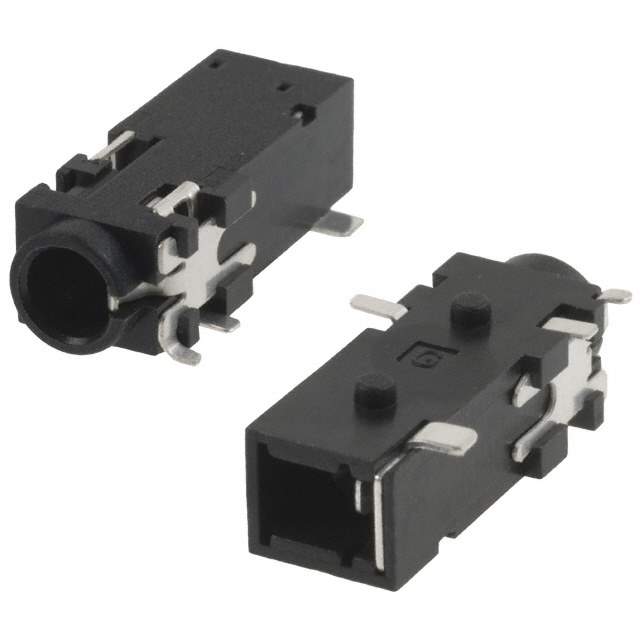

SJ-43514-SMT-TR Real Image
Same model may have multiple batches, images only for reference.

SJ-43514-SMT-TR

Part No SJ-43514-SMT-TR
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK 4COND 3.5MM SMD R/A / 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Datasheet
SJ-43514-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel Connectors>Audio Connectors
Manufacturer CUI Devices
Packaging Reel - TR
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter 0.142" (3.60mm)
Number of Positions/Contacts 4 Conductors, 4 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Surface Mount, Right Angle
Termination Solder
Shielding Unshielded
Features Board Guide
Temperature Range - Operating -20°C ~ 85°C
Voltage - Rated 12VDC
Current Rating (Amps) 1 A
Mating Length/Depth 0.551" (14.00mm)
Contact Material - Plating Silver
Body Color Black
Housing Material Polyamide (PA6T), Nylon 6T
Contact Material Brass; Copper Alloy
Base Product Number SJ-43
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number CP-43514SJTR,CP-43514SJCT-NDR,CP-43514SJTR-NDR,SJ43514SMTTR,CP-43514SJDKR,SJ-43514-SMT,045-0921R,Q6480496,CP-43514SJCT
Standard Package 1,000
Win Source Part Number 1333962-SJ-43514-SMT-TR
Ultra Librarian 3D Model Ultra Librarian SJ-43514-SMT-TR CAD Model

Description

CUI Devices presents the SJ-43514-SMT-TR phone jack connector.

  • Type: Female Connector
  • Conductors: 4
  • Contacts: 4
  • Shielded: Yes
  • Contact Material: Brass and Copper Alloy
  • Housing Material: Polyamide (PA6T), Nylon 6T
  • Mounting: Surface-mountable
  • Mounting Style: Right-angle
  • Voltage Rating: 12VDC
  • Current Rating: 1A
  • Temperature Range: -20°C to 85°C
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • ROHS3 Compliant: Yes
