Same model may have multiple batches, images only for reference.

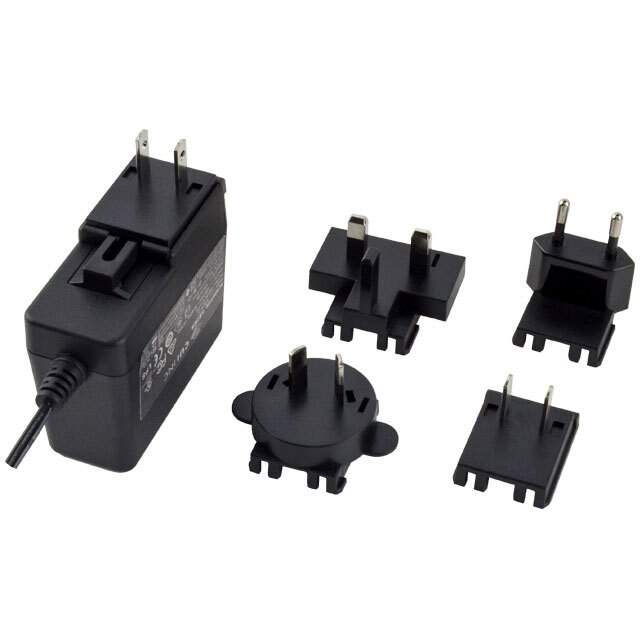

SMI36-24-V-P5 Real Image
Same model may have multiple batches, images only for reference.

SMI36-24-V-P5

Part No SMI36-24-V-P5
Manufacturer CUI Inc.
Catalog AC DC Desktop, Wall Adapters
Description AC/DC WALL MOUNT ADAPTER 24V 36W / 24V 36 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
Datasheet
SMI36-24-V-P5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Desktop, Wall Adapters
Mfr CUI Inc.
Series SMI36 (36W)
Package Box
Region Utilized International
Form Wall Mount (Class II)
Input Type Multi-Blade (Included)
Voltage - Input 90 ~ 264 VAC
Voltage - Output 24V
Current - Output (Max) 1.5A
Power (Watts) 36 W
No Load Power Consumption 100mW (Max)
Polarization Positive Center
Applications ITE (Commercial)
Efficiency Level VI, CoC Tier 2
Temperature Range - Operating 0°C ~ 40°C
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Cord Length 59" (1.50m)
Input Connector Multi-Blade
Size / Dimension 3.10" L x 1.34" W x 2.60" H (78.5mm x 34.0mm x 66.0mm)
Approval Agency CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL
Standard Number C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1
Weight 0.35 lb (160 g)
Base Product Number SMI36
Standard Package 60
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 1349643-SMI36-24-V-P5
Ultra Librarian 3D Model Ultra Librarian SMI36-24-V-P5 CAD Model

Description

The SMI36-24-V-P5 is a power supply from CUI Inc. that is used in external/internal (off-board) - AC DC desktop, wall adapters.

  • Power Output: 36 W
  • Voltage - Output: 24V
  • Current - Output: 1.5A
  • Package: Box
  • Voltage - Input: 90 ~ 264 VAC
  • Application: ITE (Commercial)
  • Operating Temperature: 0°C ~ 40°C
  • MSL Level: Not Applicable
  • HTSUS: 8504.40.9510
  • Base Product Number: SMI36
  • Approval Agency: CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL
  • Standard Numbers: C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1
