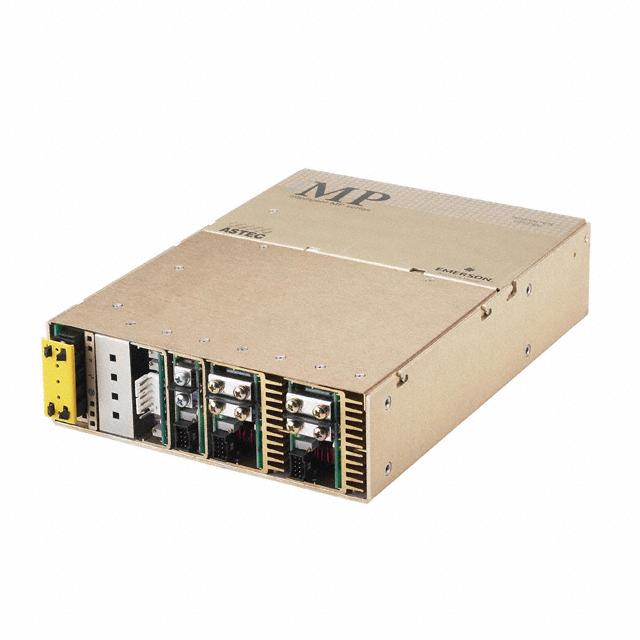

IMP4-2W1-1V1-1N0-1N0-00-A Artesyn Embedded Technologies
Same model may have multiple batches, images only for reference.

IMP4-2W1-1V1-1N0-1N0-00-A

Part No IMP4-2W1-1V1-1N0-1N0-00-A
Manufacturer Artesyn Embedded Technologies
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CNVRTR 48V 42V 2X15V 1100W
Datasheet
IMP4-2W1-1V1-1N0-1N0-00-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Artesyn Embedded Technologies
Series iMP® (1158W)
Package Bulk
Product Status Active
Type Enclosed
Number of Outputs 4
Voltage - Input 85 ~ 264 VAC, 120 ~ 300 VDC
Voltage - Output 1 48V
Voltage - Output 2 42V
Voltage - Output 3 15V
Voltage - Output 4 15V
Current - Output 1 7.5 A
Current - Output 2 4.2 A
Current - Output 3 14 A
Current - Output 4 14 A
Power (Watts) 1100W
Applications ITE (Commercial), Medical
Voltage - Isolation 2 kV
Efficiency 85%
Temperature Range - Operating -40°C ~ 70°C (With Derating)
Features Adjustable Output, I²C Interface, PFC, PMBus™, Remote Sense, Universal Input
Mounting Type Chassis Mount
Size / Dimension 10.00" L x 5.00" W x 2.50" H (254.0mm x 127.0mm x 63.5mm)
Approval Agency CB, CE, CSA, UL
Minimum Load Required No
Base Product Number IMP4-2W1
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 763051-IMP4-2W1-1V1-1N0-1N0-00-A
Ultra Librarian 3D Model Ultra Librarian IMP4-2W1-1V1-1N0-1N0-00-A CAD Model

Description

The iMP® (1158W) series AC-DC converter, part number 763051-IMP4-2W1-1V1-1N0-1N0-00-A is a high-performance power supply solution for various applications from Artesyn Embedded Technologies.

  • Power Output: 1100W
  • Voltage Outputs: 48V, 42V, 15V, 15V
  • Adjustable Output: Yes
  • Universal Input: Yes
  • Interface: I²C
  • PFC: Yes
  • PMBus™: Yes
  • Remote Sense: Yes
  • Dimensions: 10.00" L x 5.00" W x 2.50" H (254.0mm x 127.0mm x 63.5mm)
  • Application: ITE (Commercial), Medical
  • Efficiency: 85%
  • Isolation Voltage: 2kV
  • Mounting Type: Chassis Mount
  • Operating Temperature: -40°C to 70°C (with derating)
