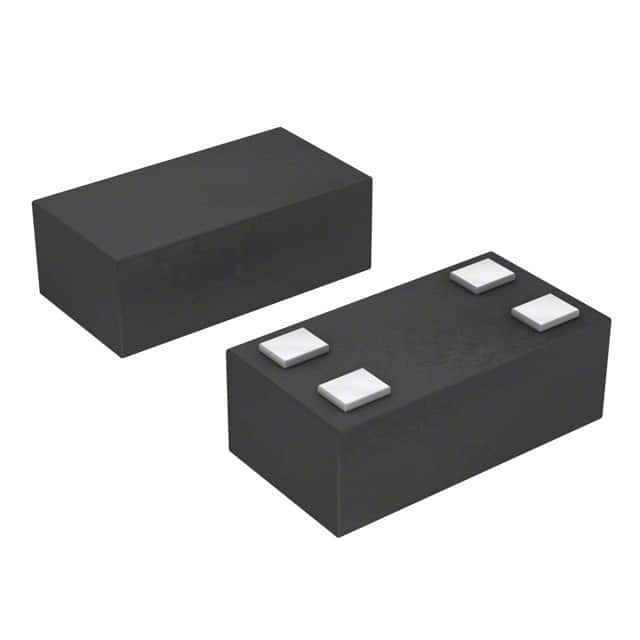

Same model may have multiple batches, images only for reference.
CP0603A0881AWTR
Same model may have multiple batches, images only for reference.

CP0603A0881AWTR

Part No CP0603A0881AWTR
Manufacturer AVX Corp/Kyocera Corp
Catalog RF Directional Coupler
Description RF DIR COUPLER 869-894MHZ 0603 / RF Directional Coupler AMPS 869MHz ~ 894MHz 18.5 ± 1dB 3W 0603 (1608 Metric)
Datasheet
CP0603A0881AWTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Directional Coupler
Mfr AVX Corp/Kyocera Corp
Package Tape & Reel
Product Status Active
Coupler Type Standard
Frequency 869MHz ~ 894MHz
Coupling Factor 18.5 ± 1dB
Applications AMPS
Insertion Loss 0.25dB
Power - Max 3W
Isolation -31dB
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 915680-CP0603A0881AWTR
Ultra Librarian 3D Model Ultra Librarian CP0603A0881AWTR CAD Model

Description

The AVX Corp/Kyocera Corp 915680-CP0603A0881AWTR is an RF directional coupler designed for AMPS applications.

  • Frequency Range: 869MHz to 894MHz
  • Maximum Power Rating: 3W
  • Coupling Factor: 18.5 ± 1dB
  • Insertion Loss: 0.25dB
  • Isolation: -31dB
  • Packaging: Tape & reel
  • Pieces per Package: 3,000
  • Package Size: 0603 (1608 Metric)
  • Supplier Device Package: 0603
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8536.30.8000
  • Product Status: Active
