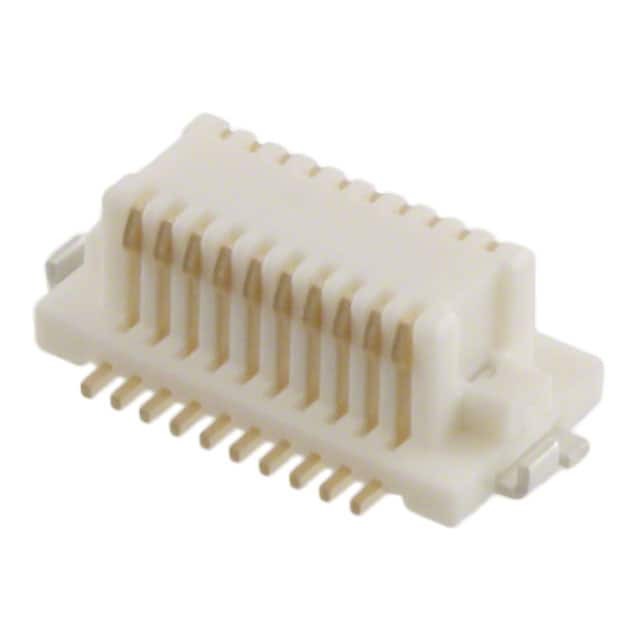

DF12B-20DS-0.5V(86) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

DF12B-20DS-0.5V(86)

Part No DF12B-20DS-0.5V(86)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular - Board to Board Connectors
Description CONN RCPT 20POS SMD GOLD / 20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF12
Package Tape & Reel
Product Status Obsolete
Connector Type Receptacle, Center Strip Contacts
Number of Positions 20
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 3.5mm, 4mm, 5mm
Height Above Board 0.106" (2.70mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 537-0303-0 86,DF12B20DS05V86,H11732DKR,Q5394890,537-0303-0-86,H11732CT,H11732TR,*DF12B-20DS-0.5V(86)
Standard Package 1,000
Win Source Part Number 1192408-DF12B-20DS-0.5V(86)
Ultra Librarian 3D Model Ultra Librarian DF12B-20DS-0.5V(86) CAD Model

Description

The Hirose Electric Co Ltd DF12B-20DS-0.5V(86) is a receptacle type connector contact with center strip contacts. Hirose Electric Co Ltd DF12B-20DS-0.5V(86)

  • Type: Connector Contact
  • Contact Type: Receptacle
  • Contacts: Center Strip
  • Number of Positions: 20
  • Pitch: 0.020 inches (0.50mm)
  • Series: DF12
  • Packaging: Tape and Reel
  • Status: Obsolete
  • ECCN: EAR99
  • Manufacturer Part Number: 1192408-DF12B-20DS-0.5V(86)
