Same model may have multiple batches, images only for reference.

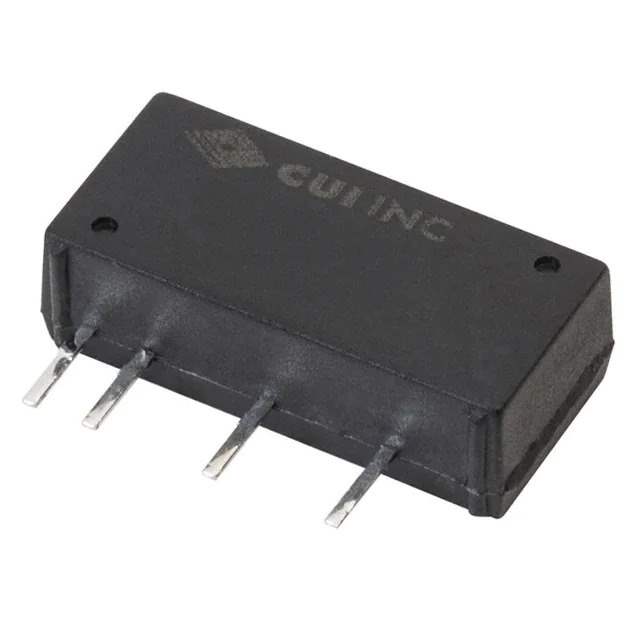

PDM2-S12-S15-S Real Image
Same model may have multiple batches, images only for reference.

PDM2-S12-S15-S

Part No PDM2-S12-S15-S
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 2W / Isolated Module DC DC Converter 1 Output 15V 133mA 10.8V - 13.2V Input
Datasheet
PDM2-S12-S15-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr CUI Inc.
Series PDM2-S (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 15V
Current - Output (Max) 133mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 105°C
Efficiency 84%
Mounting Type Through Hole
Package / Case 6-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm)
Approval Agency CB Scheme, EN, IEC, UL
Standard Number 55024; 55032 Class A; 60950-1
Base Product Number PDM2-S12
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 847771-PDM2-S12-S15-S
Ultra Librarian 3D Model Ultra Librarian PDM2-S12-S15-S CAD Model

Description

The PDM2-S12-S15-S is an isolated module DC-DC converter from the PDM2-S series, designed for use in ITE (Commercial) applications and manufactured by MEAN WELL.

  • Power Rating: 2W
  • Voltage Isolation: 1.5kV
  • Output Voltage: 15V
  • Current Output: 133mA
  • Input Voltage: 10.8V to 13.2V
  • Package Size: 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm)
  • Package: Tube (25 pcs)
  • Efficiency: 84%
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 105°C
  • Product Status: Active
  • REACH Status: Unaffected
