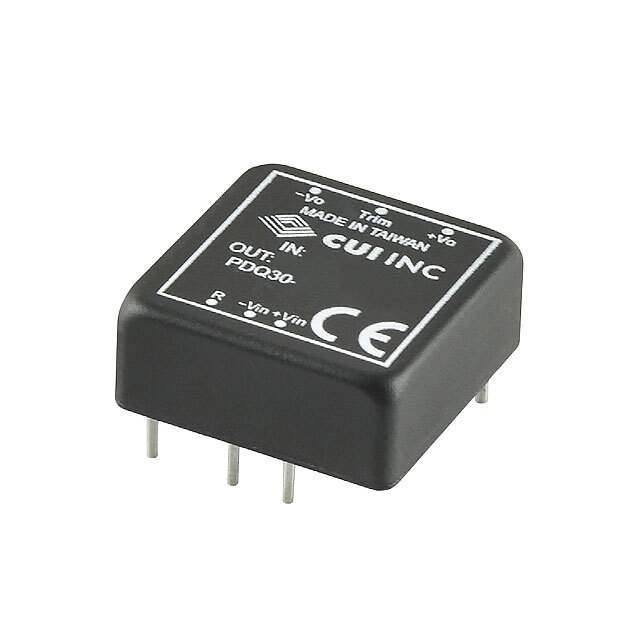

Same model may have multiple batches, images only for reference.

PDQ30-Q24-S3-D

Name: PDQ30-Q24-S3-D
Brand: CUI Inc.
SKU: WS1209062
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PDQ30-Q24-S3-D
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 30W
Datasheet	PDQ30-Q24-S3-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1209062-PDQ30-Q24-S3-D
Manufacturer	CUI Inc.
Category	Power Supplies - Board Mount DC DC Converters
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 105°C
Ultra Librarian 3D Model	Ultra Librarian PDQ30-Q24-S3-D CAD Model

Alternative Products

Description

FEATURES
• up to 30 W isolated output
• industry standard 1” x 1” package
• 4:1 input range
• single/dual regulated output
• over voltage, input under voltage lockout, and short circuit protections
• 1,500 Vdc isolation voltage
• five-sided shielded case
• remote on/off control
• output trim
• -40 to 105°C temperature range
• efficiency up to 90%
• EN 62368-1
• meets UL 62368-1
