Same model may have multiple batches, images only for reference.

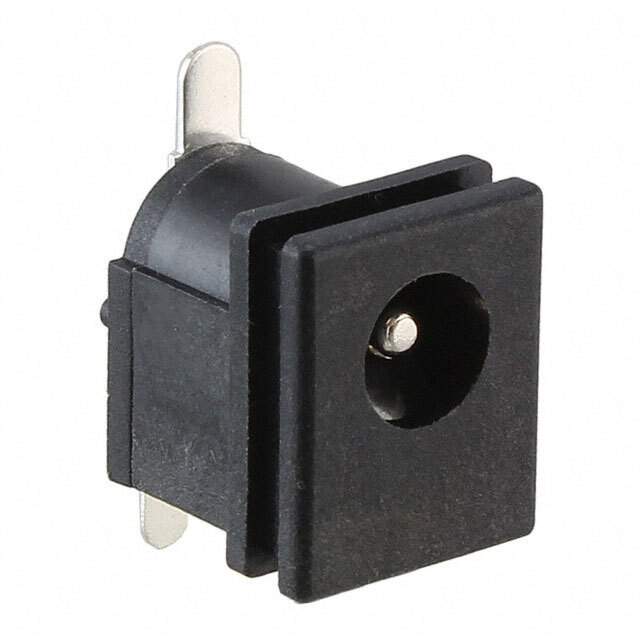

PJ-015BH-SMT-TR Real Image
Same model may have multiple batches, images only for reference.

PJ-015BH-SMT-TR

Part No PJ-015BH-SMT-TR
Manufacturer CUI Inc.
Catalog Barrel - Power Connectors
Description CONN PWR JACK 2.5X5.5MM SOLDER / Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Surface Mount
Datasheet
PJ-015BH-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel - Power Connectors
Mfr CUI Devices
Package Tape & Reel
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter 0.098" (2.50mm ID), 0.260" (6.60mm OD)
Number of Positions/Contacts 2 Sets of 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting SMD (SMT)
Termination Solder
Shielding Unshielded
Features Board Guide
Voltage - Rated 24VDC
Current Rating (Amps) 5 A
Mating Length/Depth 0.374" (9.50mm)
Material Flammability Rating UL94 V-0
Contact Material - Plating Silver
Temperature Range - Operating -25°C ~ 85°C
Housing Material Polyamide (PA6T), Nylon 6T
Contact Material Brass, Copper Alloy
Body Color Black
Base Product Number PJ-015
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names PJ015BHSMTTR,CP-015BHPJ-TR,PJ-015BH-SMT,CP-015BHPJ-CT,CP-015BHPJ-DKR
Standard Package 200
Win Source Part Number 1085203-PJ-015BH-SMT-TR
Ultra Librarian 3D Model Ultra Librarian PJ-015BH-SMT-TR CAD Model

Description

The PJ-015BH-SMT-TR is a male power jack connector manufactured by CUI Devices.

  • Contact Material: Brass and copper alloy
  • Contact Plating: Silver
  • Voltage Rating: 24VDC
  • Current Rating: 5A
  • Mating Length: 0.374 inches
  • Mating Diameter: 2.50mm ID and 5.50mm OD
  • Temperature Range: -25°C to 85°C
  • Mounting Type: SMD (SMT) mountable
  • Package: Tape and reel
  • Standard Package: 200
