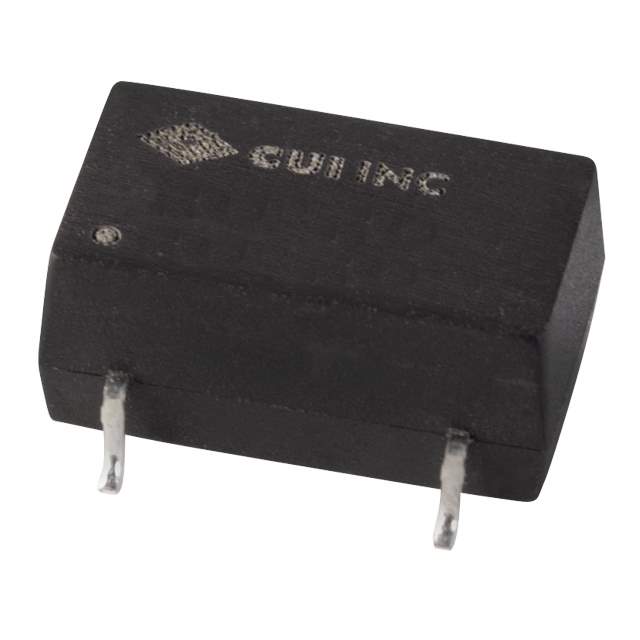

V7805-500-SMT-TR Real Image1 V7805-500-SMT-TR Real Image2
Same model may have multiple batches, images only for reference.
V7805-500-SMT-TR Real Image1 V7805-500-SMT-TR Real Image2
V7805-500-SMT-TR Real Image1 V7805-500-SMT-TR Real Image2
Same model may have multiple batches, images only for reference.

V7805-500-SMT-TR

Part No V7805-500-SMT-TR
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2.5W / Linear Regulator Replacement DC DC Converter 1 Output 5V 500mA 6V - 28V Input
Datasheet
V7805-500-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr CUI Inc.
Series V78-500-SMT
Package Tape & Reel
Type Linear Regulator Replacement
Number of Outputs 1
Voltage - Input (Min) 6V
Voltage - Input (Max) 28V
Voltage - Output 1 5V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 500mA
Power (Watts) 2.5 W
Applications ITE (Commercial)
Features Remote On/Off, OTP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 94%
Mounting Type Surface Mount
Package / Case 10-SMD Module, 6 Leads
Size / Dimension 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm)
Control Features Enable, Active High
Base Product Number V7805
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Standard Package 500 pcs
Win Source Part Number 1383828-V7805-500-SMT-TR
Ultra Librarian 3D Model Ultra Librarian V7805-500-SMT-TR CAD Model

Description

The V7805-500-SMT-TR is a linear regulator replacement module from CUI Inc. It is part of the V78-500-SMT series and is designed for power supplies in board mount applications.

  • Features: Remote On/Off Control, Overtemperature Protection (OTP), Short Circuit Protection (SCP)
  • Size / Dimension: 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm)
  • Mounting Type: Surface Mount
  • Voltage - Input: 6V to 28V
  • Output Current: 500mA (Max)
  • Voltage - Output: 5V
  • Efficiency: 94%
  • Application: ITE (Commercial)
  • Package: Tape & Reel
  • Standard Package Quantity: 500 Pieces
  • Power: 2.5W
  • Control Features: Enable, Active High
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: CUI Inc.
