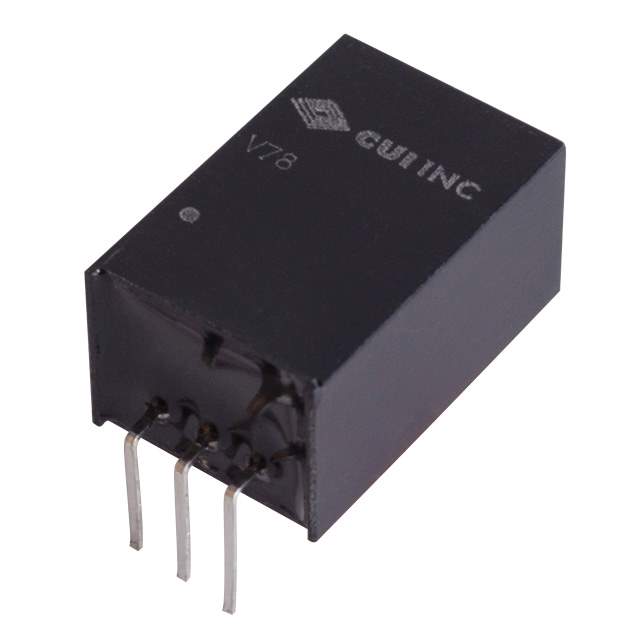

V7805W-500R Real Image
Same model may have multiple batches, images only for reference.

V7805W-500R

Part No V7805W-500R
Manufacturer CUI Inc.
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER 5V 2.5W  /  Linear Regulator Replacement DC DC Converter 1 Output 5V 500mA 9V - 72V Input
Datasheet
V7805W-500R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr CUI Inc.
Series V78W-500
Package Tube
Type Linear Regulator Replacement
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 72V
Voltage - Output 1 5V
Current - Output (Max) 500mA
Power (Watts) 2.5 W
Applications ITE (Commercial)
Features OTP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 87%
Mounting Type Through Hole, Right Angle
Package / Case 3-SIP Module
Dimension 0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm)
Base Product Number V7805
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 656-93018R,V7805W500R,102-2449,2266-V7805W-500R
Standard Package 44
Win Source Part Number 1181059-V7805W-500R
Ultra Librarian 3D Model Ultra Librarian V7805W-500R CAD Model

Description

The V78W-500 series is a linear regulator replacement DC-DC converter manufactured by CUI Inc. The 1181059-V7805W-500R is a part of this series.

  • Mounting Type: through-hole, right-angle
  • Power: 2.5W
  • Current Output: 500mA
  • Voltage Input Range: 9V to 72V
  • Voltage Output: 5V
  • Features: OTP and SCP
  • Efficiency: 87%
  • Category: Power Supplies - Board Mount > DC DC Converters
  • Application: ITE (Commercial)
  • Standard Package: 44
  • Package: tube
