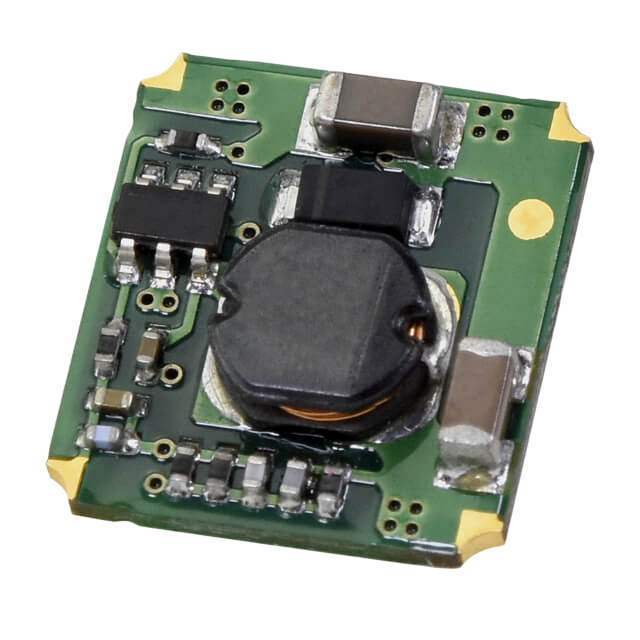

VXO7805-500-M-TR CUI Inc.
Same model may have multiple batches, images only for reference.

VXO7805-500-M-TR

Part No VXO7805-500-M-TR
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2.5W
Datasheet
VXO7805-500-M-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209197-VXO7805-500-M-TR
Manufacturer CUI Inc.
Category Power Supplies - Board Mount DC DC Converters
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Applications ITE (Commercial)
Operating Temperature -40°C ~ 85°C (With Derating)
Mounting Type Surface Mount
Package / Case 4-SMD Module
Ultra Librarian 3D Model Ultra Librarian VXO7805-500-M-TR CAD Model

Description

FEATURES
• ultra-thin SMD Package, thickness ≤3.5 mm
• open frame
• high efficiency up to 95%
• no-load input current as low as 0.2 mA
• wide temperature range: -40°C ~ +85°C
• output short-circuit protection
