Same model may have multiple batches, images only for reference.

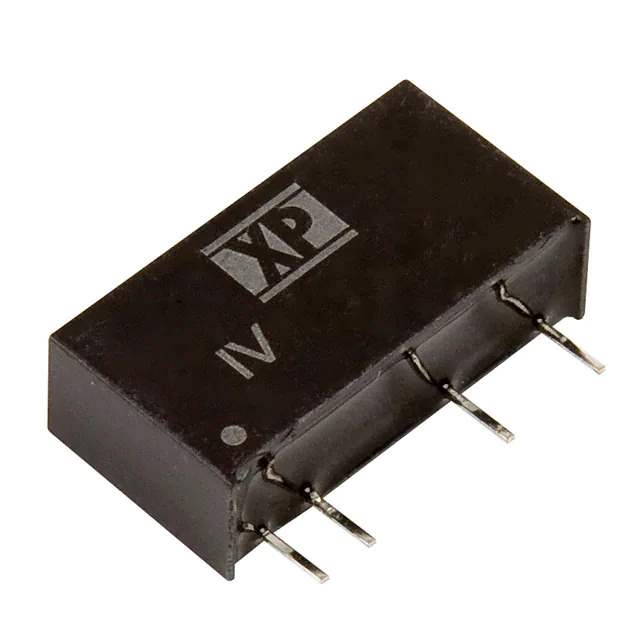

IV0505SA Real Image
Same model may have multiple batches, images only for reference.

IV0505SA

Part No IV0505SA
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet
IV0505SA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series IV (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Standard Number 62368-1
Base Product Number IV0505
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 876038-IV0505SA
Ultra Librarian 3D Model Ultra Librarian IV0505SA CAD Model

Description

The IV (1W) is an isolated module power supply from XP Power.

  • Power: 1W power supply
  • Package: comes in a tube package.
  • Size: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
  • Application: designed for ITE (Commercial) applications
  • Package Standard: 20 pcs.
  • Output: features a single output
  • Maximum Output Current: 200mA.
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage: 5V
  • Efficiency: 78%
  • Temperature Range: -40°C to 85°C.
  • Status: an active product from XP Power, with a base product number of IV0505 and complies with ECCN: EAR99.
