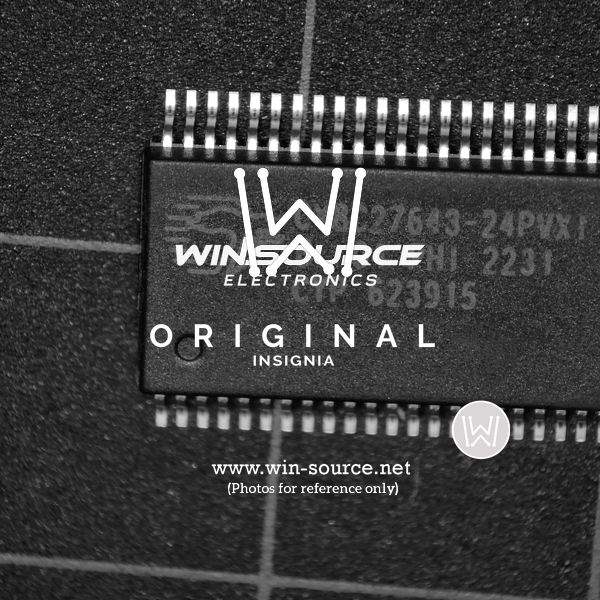

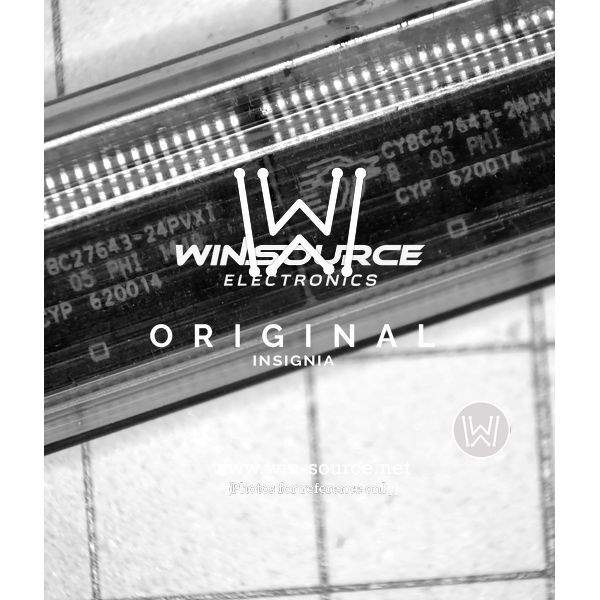

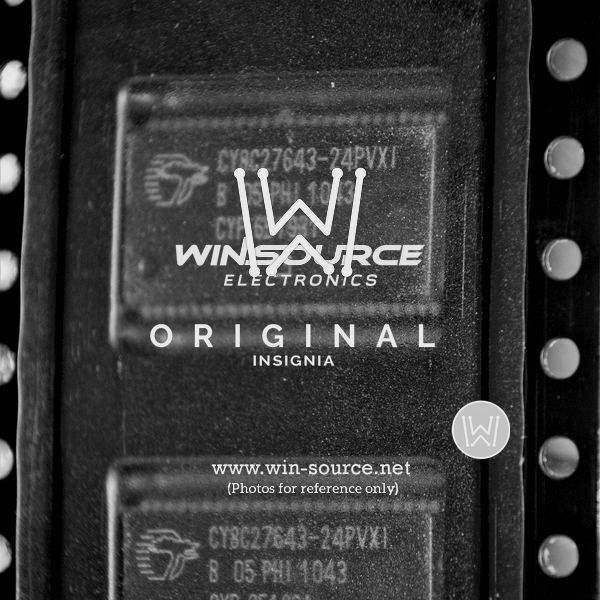

CY8C27643-24PVXI Real Image CY8C27643-24PVXI real image3165 CY8C27643-24PVXI real image3166 CY8C27643-24PVXI Real Image
Same model may have multiple batches, images only for reference.
CY8C27643-24PVXI Real Image CY8C27643-24PVXI real image3165 CY8C27643-24PVXI real image3166 CY8C27643-24PVXI Real Image
CY8C27643-24PVXI Real Image CY8C27643-24PVXI real image3165 CY8C27643-24PVXI real image3166 CY8C27643-24PVXI Real Image
Same model may have multiple batches, images only for reference.

CY8C27643-24PVXI

Part No CY8C27643-24PVXI
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 16KB FLASH 48SSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Cypress Semiconductor Corp
Standard Package 1050
Category Integrated Circuits(ICs)
Family Embedded - Microcontrollers
Series PSOC1 CY8C27xxx
Packaging Tube
Core Processor M8C
Core Size 8-Bit
Speed 24MHz
Connectivity I²C SPI UART/USART
Peripherals POR PWM WDT
Number of I/O 44
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
RAM Size 256 x 8
Operating Supply Voltage 3 V ~ 5.25 V
Data Converters A/D 4x14b; D/A 4x9b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)
Package 48-BSSOP (0.295" 7.50mm Width)
Manufacturer Device Package 48-SSOP
Win Source Part Number 080286-CY8C27643-24PVXI
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CY8C27643-24PVXI CAD Model

Description

Product Overview

The CY8C27643-24PVXI microcontroller in the PSoC line provides a versatile platform for developing innovative solutions in both simple and complex electronic designs. Its integrated features facilitate highly adaptable configurations ideal for precision tasks.

Features and Benefits

  • Highly Adaptable: Offers an extensive array of programmable resources.
  • Enhanced Precision: Suited for applications requiring tight control and accuracy.
  • Durable Performance: Engineered for prolonged reliability in diverse applications.

Applications

  • Precision Instrumentation
  • Automated Test Equipment
  • Personal Health Devices
