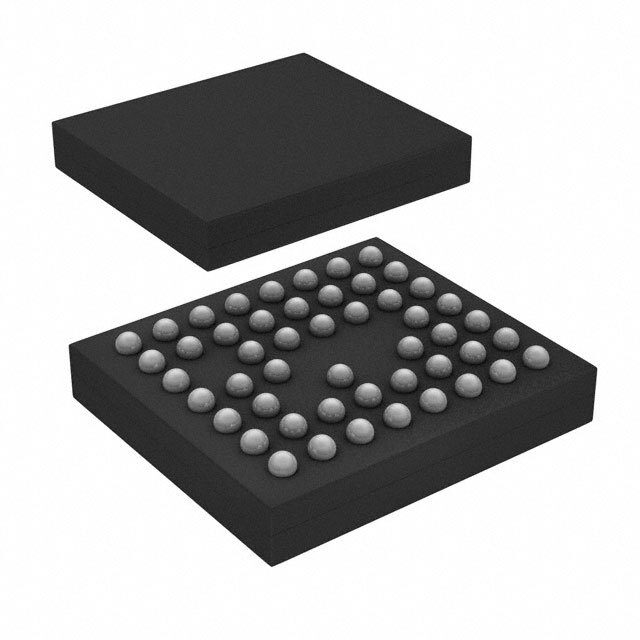

Same model may have multiple batches, images only for reference.
CYW20713A1KUFBXG Cypress Semiconductor Corp
Same model may have multiple batches, images only for reference.

CYW20713A1KUFBXG

Part No CYW20713A1KUFBXG
Manufacturer Cypress Semiconductor Corp
Catalog RF Transceiver ICs
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver ICs
Mfr Cypress Semiconductor Corp
Package Tray
Product Status Obsolete
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.0 +EDR
Modulation 4DQPSK, 8DPSK, GFSK
Frequency 2.4GHz
Data Rate (Max) 3Mbps
Power - Output 10dBm
Sensitivity -91dBm
Serial Interfaces I²C, I²S, JTAG, SPI, UART, USB
GPIO 8
Voltage - Supply 2.3V ~ 5.5V
Current - Receiving 32mA
Current - Transmitting 59mA
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 50-UFBGA
Supplier Device Package 50-FPBGA (4.5x4)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.39.0001
Win Source Part Number 1314463-CYW20713A1KUFBXG
Ultra Librarian 3D Model Ultra Librarian CYW20713A1KUFBXG CAD Model

Description

The Cypress Semiconductor Corp CYW20713A1KUFBXG is a TxRx + MCU type RF Transceiver IC that operates at a frequency of 2.4GHz.

  • Frequency: 2.4GHz
  • Protocol: Bluetooth v4.0 +EDR
  • Sensitivity: -91dBm
  • Data Rate: 3Mbps
  • Serial Interfaces: I²C, I²S, JTAG, SPI, UART, and USB
  • GPIO Pins: 8
  • Operating Voltage: 2.3V to 5.5V
  • Package: 50-UFBGA
  • ECCN: 5A992C
  • REACH: Unaffected
  • HTSUS Code: 8542.39.0001
