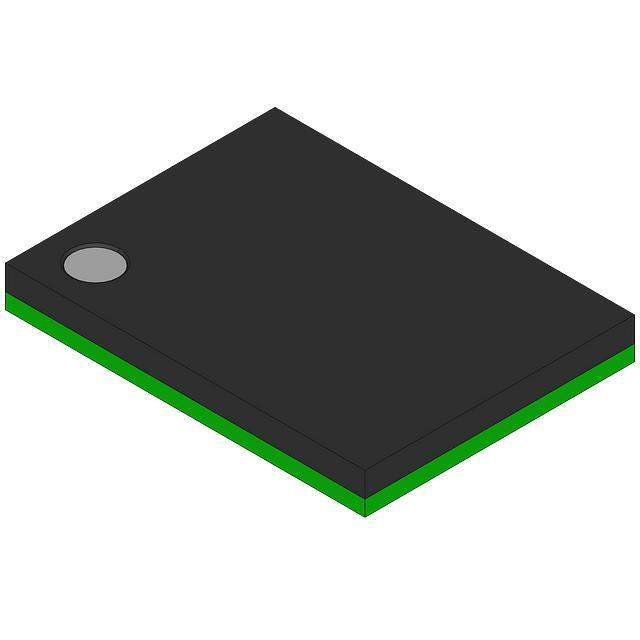

S25FL116K0XBHIS30 Real Image
Same model may have multiple batches, images only for reference.

S25FL116K0XBHIS30

Part No S25FL116K0XBHIS30
Manufacturer Cypress Semiconductor Corp
Catalog Unclassified Memory
Description IC FLASH 16MBIT SPI/QUAD 24BGA / FLASH - NOR Memory IC 16Mb (2M x 8) SPI - Quad I/O 108 MHz 24-BGA (6x8)
Datasheet
S25FL116K0XBHIS30 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Cypress Semiconductor Corp
Series FL1-K
Package Tray
Product Status Obsolete
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mb (2M x 8)
Memory Interface SPI - Quad I/O
Clock Frequency 108 MHz
Write Cycle Time - Word, Page 3ms
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 24-TBGA
Supplier Device Package 24-BGA (6x8)
Base Product Number S25FL116
Other Names 2832-S25FL116K0XBHIS30
Standard Package 338
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0071
Win Source Part Number 1255403-S25FL116K0XBHIS30
Ultra Librarian 3D Model Ultra Librarian S25FL116K0XBHIS30 CAD Model

Description

The Cypress Semiconductor Corp S25FL116K0XBHIS30 is a 16Mb (2M x 8) FLASH - NOR memory chip.

  • Memory Size: 16Mb (2M x 8)
  • Memory Type: FLASH - NOR
  • Voltage Supply Range: 2.7V ~ 3.6V
  • Clock Frequency: 108 MHz
  • Package: 24-TBGA
  • Supply Device Package: 24-BGA (6x8)
  • Memory Interface: SPI - Quad I/O
  • Write Cycle Time: 3ms
  • Status: Obsolete
  • MSL Level: 3 (168 Hours)
