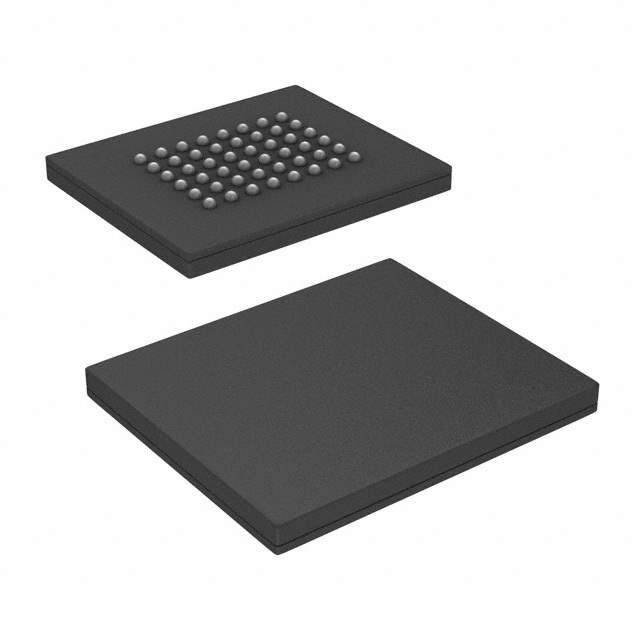

The S29AL016J70BFN020 is a 16 Mbit (2 Mbyte) flash memory device manufactured by Cypress Semiconductor. It is a CMOS 3.0-volt single power supply flash memory, offering high performance and low power consumption. This memory is typically used for storing program code and data in embedded systems, providing non-volatile storage that retains data even when power is removed.

Applications:

• Embedded Systems: Storage for firmware, configuration data, and application code in embedded devices.
• Industrial Control: Program storage for PLCs and other industrial automation equipment.
• Networking Equipment: Storage for boot code, network configurations, and operating systems in routers, switches, and other network devices.
• Consumer Electronics: Firmware storage for digital cameras, MP3 players, and other consumer devices.
• Automotive Electronics: Storing software and data in automotive control systems.

Features:

• 16 Mbit (2 Mbyte) density: Provides ample storage for code and data.
• 3.0-volt single power supply: Simplifies system design and reduces power consumption.
• Sector Erase Architecture: Allows individual sectors to be erased and reprogrammed.
• Top or Bottom Boot Sectors: Flexible sector configuration to optimize memory usage.
• Page Mode Operation: High-speed data transfers with reduced latency.
• Common Flash Interface (CFI): Standard interface for device identification and parameter retrieval.
• Write Protection: Hardware write protection to prevent accidental data corruption.

Benefits:

• Non-Volatile Storage: Retains data even when power is removed, ensuring reliable operation.
• High Performance: Fast read and write speeds for quick data access.
• Low Power Consumption: Minimizes energy usage in portable and battery-powered devices.
• Design Flexibility: Sector erase architecture and boot sector options provide flexibility in memory organization.
• Simplified Integration: Common Flash Interface (CFI) simplifies device integration into existing systems.
• Data Protection: Write protection features prevent accidental data modification.

Additional Details:

The S29AL016J70BFN020 flash memory operates with a single 3.0-volt power supply, making it compatible with low-voltage systems. The device's sector erase architecture allows individual sectors to be erased and reprogrammed without affecting other sectors, enabling efficient code and data management. The common flash interface (CFI) provides a standard method for identifying the device and retrieving its parameters, simplifying integration into various systems. The memory's write protection features prevent accidental data corruption, ensuring data integrity. It supports both top and bottom boot sectors, offering flexibility in organizing memory for boot code storage. It is commonly used in embedded systems, industrial control, networking equipment, consumer electronics, and automotive electronics.
