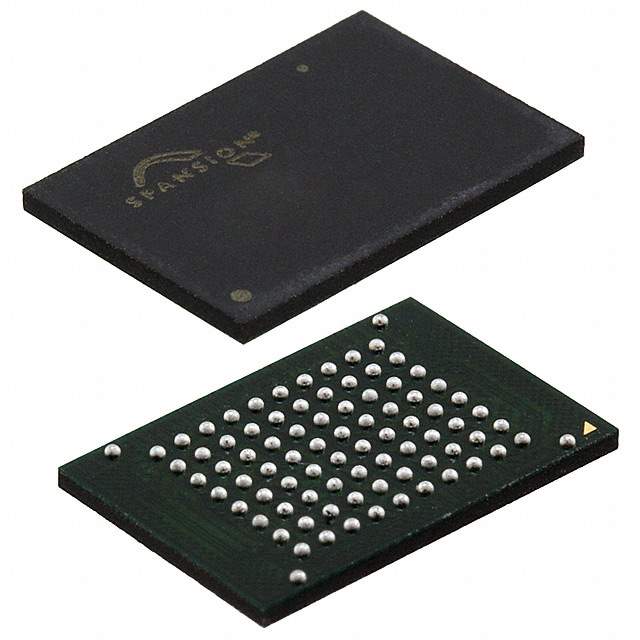

S29WS256P0SBFW002 Real Image
Same model may have multiple batches, images only for reference.

S29WS256P0SBFW002

Part No S29WS256P0SBFW002
Manufacturer Cypress Semiconductor Corp
Catalog Unclassified Memory
Description IC FLASH 256MBIT PARALLEL 84FBGA / FLASH - NOR Memory IC 256Mb (16M x 16) Parallel 80 MHz 80 ns 84-FBGA (11.6x8)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Cypress Semiconductor Corp
Series WS-P
Package Tape & Reel (TR)
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 256Mb (16M x 16)
Memory Interface Parallel
Clock Frequency 80 MHz
Write Cycle Time - Word, Page 60ns
Access Time 80 ns
Voltage - Supply 1.7V ~ 1.95V
Temperature Range - Operating -25°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 84-VFBGA
Supplier Device Package 84-FBGA (11.6x8)
Base Product Number S29WS256
Standard Package 700
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 1254620-S29WS256P0SBFW002
Ultra Librarian 3D Model Ultra Librarian S29WS256P0SBFW002 CAD Model

Description

The S29WS256P0SBFW002 is a 256Mb (16M x 16) non-volatile, parallel flash memory designed by Cypress Semiconductor Corp.

  • Access Time: 80 ns
  • Voltage Supply: 1.7V to 1.95V
  • Package: 84-FBGA (11.6x8)
  • Packaging: Tape and Reel
  • Clock Frequency: 80 MHz
  • Write Cycle Time: 60ns
  • Memory Interface: Parallel
  • ECCN: 3A991B1A
  • MSL Level: 3 (168 hours)
  • REACH Status: Unaffected
  • HTSUS Code: 8542.32.0071
  • Base Product Number: S29WS256
