The S70GL02GP11FAIR23 is a 2 Gbit (256 MB) flash memory device manufactured by Cypress Semiconductor Corp. It belongs to the GL-S family of stacked multi-chip package (MCP) NOR flash memories. This device is optimized for high-performance applications requiring fast read operations, execute-in-place (XIP) capabilities, and reliable data storage in embedded systems.

Applications

• Automotive applications (e.g., instrument clusters, navigation systems, infotainment)
• Industrial control systems
• Networking equipment (e.g., routers, switches)
• Medical devices
• Embedded systems requiring high-density, non-volatile storage

Features

• 2 Gbit (256 MB) capacity
• NOR flash architecture
• Operating voltage: 1.8V
• Operating temperature: -40°C to +85°C
• Burst read mode
• Sector erase and chip erase operations
• Common Flash Interface (CFI) for easy system integration

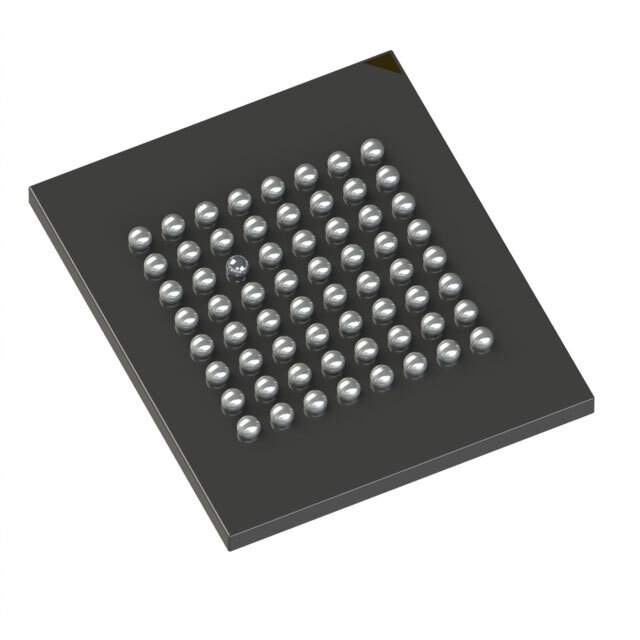

• Package: 107-ball FBGA

Benefits

• High Density: Provides ample storage space for complex code and large datasets.
• Fast Read Performance: Supports quick boot times and enables efficient XIP operation.
• Reliable Data Storage: Ensures data integrity and long-term retention.
• Low Power Consumption: Designed for energy-efficient operation, extending battery life in portable devices.
• Wide Operating Temperature Range: Suitable for use in harsh environments.
• Easy Integration: Simplifies system design and reduces development time.

Additional Details

The S70GL02GP11FAIR23 is designed for applications requiring both high density and fast access times. Its NOR flash architecture supports random access reads, making it ideal for executing code directly from flash memory. The device also features sector erase and chip erase operations for efficient memory management. Its 107-ball FBGA package is suitable for compact PCB designs. The operating voltage is 1.8V. The device complies with industry standards for environmental protection (e.g., RoHS compliant).
