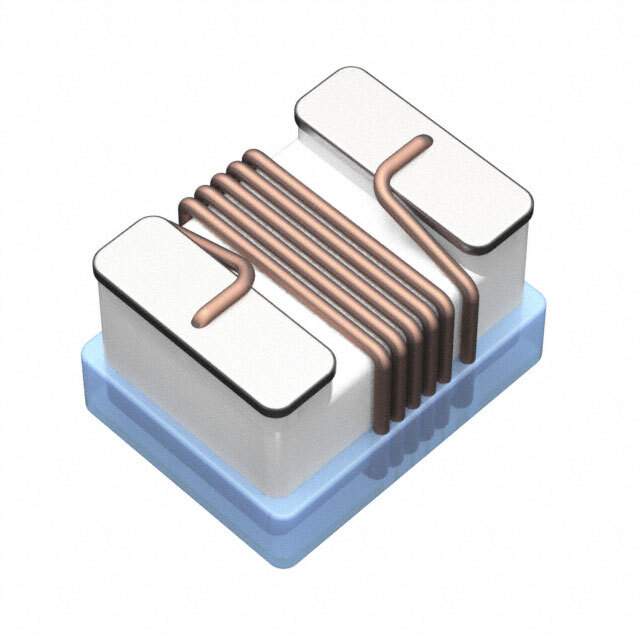

0805CS-681EJFS Real Image
Same model may have multiple batches, images only for reference.

0805CS-681EJFS

Part No 0805CS-681EJFS
Manufacturer Delta Electronics
Catalog Fixed Inductors
Description FIXED IND 680NH 500MA 600MOHM SM / 680 nH Unshielded Drum Core, Wirewound Inductor 500 mA 600mOhm 0805 (2012 Metric)
Datasheet
0805CS-681EJFS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Delta Electronics/Components
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 680 nH
Tolerance ±5%
Current Rating (Amps) 500 mA
Shielding Unshielded
DC Resistance (DCR) 600mOhm
Q @ Freq 20 @ 25.2MHz
Frequency - Self Resonant 300MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 25.2 MHz
Mounting Surface Mount
Case / Package 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.090" L x 0.067" W (2.29mm x 1.71mm)
Height - Seated (Max) 0.057" (1.45mm)
Base Product Number 0805CS
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 2035-0805CS-681EJFSCT,2035-0805CS-681EJFSTR,0805CS-681EJFS-ND,2035-0805CS-681EJFSDKR
Standard Package 2,000
Win Source Part Number 1329576-0805CS-681EJFS
Ultra Librarian 3D Model Ultra Librarian 0805CS-681EJFS CAD Model

Description

The Delta Electronics/Components 1329576-0805CS-681EJFS is a surface mount drum core, wirewound inductor.

  • Manufacturer: Delta Electronics/Components
  • Mounting Type: Surface Mount
  • Core Type: Drum Core
  • Winding Type: Wirewound
  • Core Material: Ferrite
  • Inductance: 680 nH
  • Tolerance: ±5%
  • DC Resistance: 600mOhm
  • Q @ Freq: 20 @ 25.2MHz
  • Frequency Self-Resonant: 300MHz
  • Current Rating: 500 mA
  • Shielding: Unshielded
  • Size: 0.090" L x 0.067" W (2.29mm x 1.71mm)
  • Height (Seated): 0.057" (1.45mm)
  • Packaging: Reel of 2,000
  • Operating Temperature Range: -40°C ~ 85°C
  • Compliance: RoHS3
  • REACH: Unaffected
