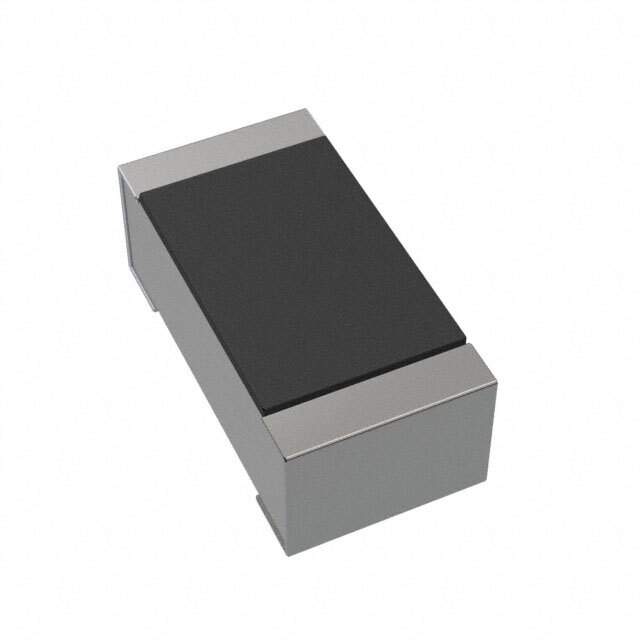

CML0306-3N9-BNH Real Image
Same model may have multiple batches, images only for reference.

CML0306-3N9-BNH

Part No CML0306-3N9-BNH
Manufacturer Delta Electronics
Catalog Fixed Inductors
Description FIXED IND 3.9NH 350MA 400MOHM SM / 3.9 nH Shielded Thin Film Inductor 350 mA 400mOhm Max 0201 (0603 Metric)
Datasheet
CML0306-3N9-BNH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Delta Electronics/Cyntec
Series CML0306
Package Tape & Reel (TR)
Product Status Obsolete
Type Thin Film
Inductance 3.9 nH
Tolerance ±0.1nH
Current Rating (Amps) 350 mA
Shielding Shielded
DC Resistance (DCR) 400mOhm Max
Q @ Freq 4 @ 100MHz
Frequency - Self Resonant 6GHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 100 MHz
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201
Dimension 0.024" L x 0.012" W (0.61mm x 0.31mm)
Height - Seated (Max) 0.013" (0.33mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 10,000
Win Source Part Number 1111571-CML0306-3N9-BNH
Ultra Librarian 3D Model Ultra Librarian CML0306-3N9-BNH CAD Model

Description

This electronic component is a thin film fixed inductor from the CML0306 series manufactured by Delta Electronics/Cyntec.

  • Win Source Part Number: 1111571-CML0306-3N9-BNH
  • Shielded: Yes
  • Package: Tape and Reel (TR)
  • Inductance: 3.9 nH
  • Tolerance: ±0.1nH
  • Height Seated: 0.013" (0.33mm)
  • Package/Case: 0201 (0603 Metric)
  • DC Resistance (DCR): 400mOhm Max
  • Q @ Freq: 4 @ 100MHz
  • Frequency Self-Resonant: 6GHz
  • Mounting Type: SMD (SMT)
  • Standard Package: 10,000
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.024" L x 0.012" W (0.61mm x 0.31mm)
